Ladybird Browser

I’ve been playing with the (pre-Alpha version of) Ladybird, and it fills me with such joy and excitement.

Browser diversity

Back in 2018, while other Web developers were celebrating, I expressed my dismay at the news that Microsoft Edge was on the cusp of switching from using Microsoft’s own browser engine EdgeHTML to using Blink. Blink is the engine that powers almost all other mainstream browsers; all but Firefox, which continues to stand atop Gecko.

The developers who celebrated this loss of rendering engine diversity were, I suppose, happy to have one fewer browser in which they must necessarily test their work. I guess these are the same developers who don’t test the sites they develop for accessibility (does your site work if you can’t see the images? what about with a keyboard but without a pointing device? how about if you’re colourblind?), or consider what might happen if a part of their site fails (what if the third-party CDN that hosts your JavaScript libraries goes down or is blocked by the user’s security software or their ISP?).

But I was sad, because – as I observed after Andre Alves Garzia succinctly spelled it out – browser engines are an endangered species. Building a new browser that supports the myriad complexities of the modern Web is such a huge endeavour that it’s unlikely to occur from scratch: from this point on, all “new” browsers are likely to be based upon an existing browser engine.

Engine diversity is important. Last time we had a lull in engine diversity, the Web got stuck, stagnating in the shadow of Internet Explorer 6’s dominance and under the thumb of Microsoft’s interests. I don’t want those days to come back; that’s a big part of why Firefox is my primary web browser.

A Ladybird book browser

Spoof cover for "The Ladybird Book of The Browser" — I actually still own a copy of the book from which I adapted this cover!

Ladybird is a genuine new browser engine. Y’know, that thing I said that we might never see happen again! So how’ve they made it happen?

It helps that it’s not quite starting from scratch. It’s starting point is the HTML viewer component from SerenityOS. And… it’s pretty good. It’s DOM processing’s solid, it seems to support enough JavaScript and CSS that the modern Web is usable, even if it’s not beautiful 100% of the time.

They’re not even expecting to make an Alpha release until next year! Right now if you want to use it at all, you’re going to need to compile the code for yourself and fight with a plethora of bugs, but it works and that, all by itself, is really exciting.

They’ve got four full-time engineers, funded off donations, with three more expected to join, plus a stack of volunteer contributors on Github. I’ve raised my first issue against the repo; sadly my C++ probably isn’t strong enough to be able to help more-directly, even if I somehow did have enough free time, which I don’t. But I’ll be watching-from-afar this wonderful, ambitious, and ideologically-sound initiative.

#100DaysToOffload

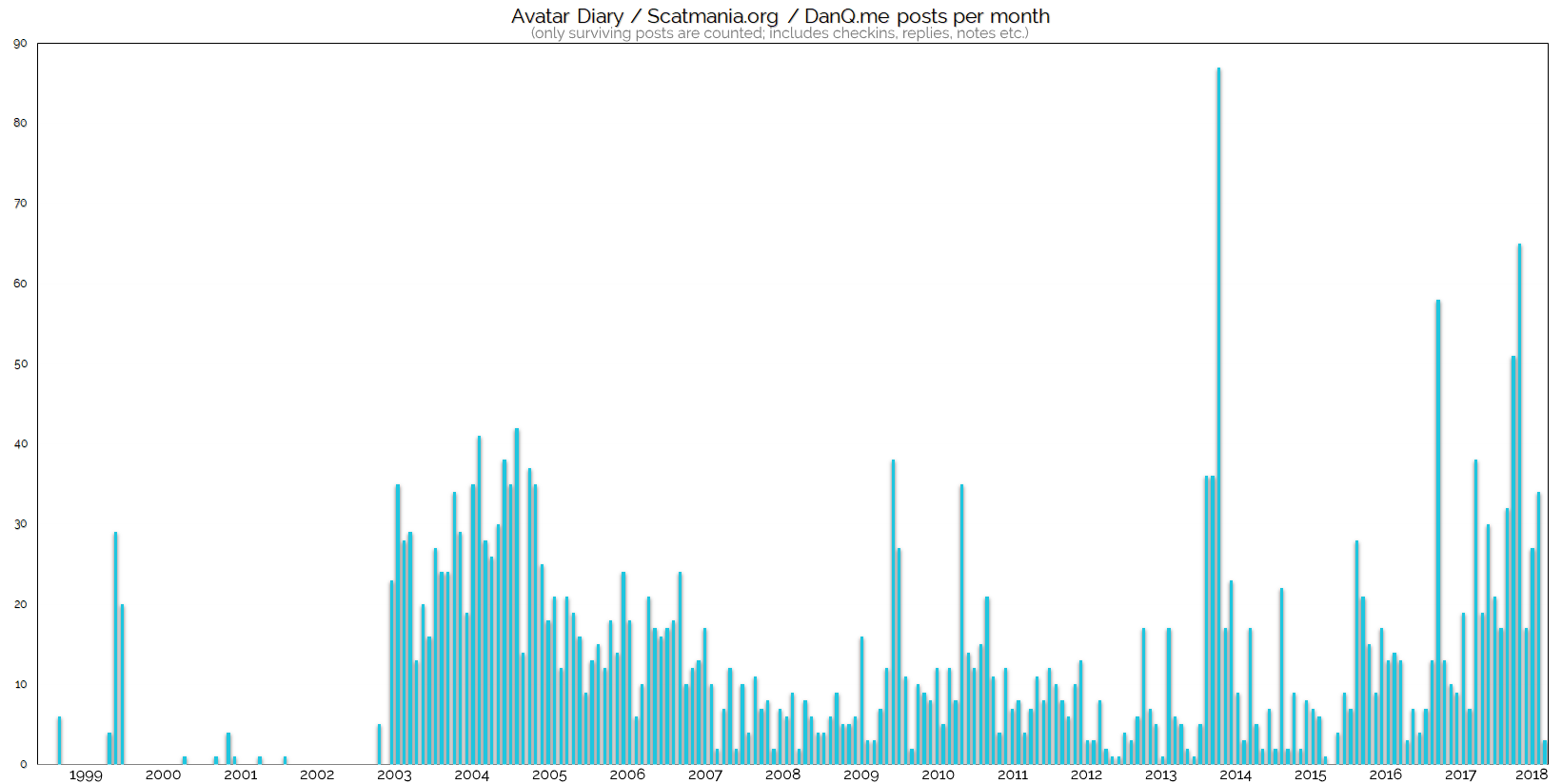

Woop! This is my 100th post of the year (stats), even using my more-conservative/pedant-friendly “don’t count checkins/reposts/etc. rule. If you’re not a pedant, I achieved #100DaysToOffload when I found a geocache alongside Regents Canal while changing trains to go to Amsterdam where I played games with my new work team, looked at windows and learned about how they’ve been taxed, and got nerdsniped by a bus depot. In any case: whether you’re a pedant or not you’ve got to agree I’ve achieved it now!

Netscape’s Untold Webstories

I mentioned yesterday that during Bloganuary I’d put non-Bloganuary-prompt post ideas onto the backburner, and considered extending my daily streak by posting them in February. Here’s part of my attempt to do that:

Let’s take a trip into the Web of yesteryear, with thanks to our friends at the Internet Archive’s WayBack Machine.

The page we’re interested in used to live at http://www.netscape.com/comprod/columns/webstories/index.html, and promised to be a showcase for best practice in Web development. Back in October 1996, it looked like this:

The page is a placeholder for Netscape Webstories (or Web Site Stories, in some places). It’s part of a digital magazine called Netscape Columns which published pieces written by Marc Andreeson, Jim Barksdale, and other bigwigs in the hugely-influential pre-AOL-acquisition Netscape Communications.

This new series would showcase best practice in designing and building Web sites¹, giving a voice to the technical folks best-placed to speak on that topic. That sounds cool!

Those white boxes above and below the paragraph of text aren’t missing images, by the way: they’re horizontal rules, using the little-known size attribute to specify a thickness of <hr size=4>!²

Certainly you’re excited by this new column and you’ll come back in November 1996, right?

Oh. The launch has been delayed, I guess. Now it’s coming in January.

The <hr>s look better now their size has been reduced, though, so clearly somebody’s paying attention to the page. But let’s take a moment and look at that page title. If you grew up writing web pages in the modern web, you might anticipate that it’s coded something like this:

<h2 style="font-variant: small-caps; text-align: center;">Coming Soon</h2>

There’s plenty of other ways to get that same effect. Perhaps you prefer font-feature-settings: 'smcp' in your chosen font; that’s perfectly valid. Maybe you’d use margin: 0 auto or something to centre it: I won’t judge.

But no, that’s not how this works. The actual code for that page title is:

<center>
  <h2>
    <font size="+3">C</font>OMING
    <font size="+3">S</font>OON
  </h2>
</center>

Back when this page was authored, we didn’t have CSS³. The only styling elements were woven right in amongst the semantic elements of a page⁴. It was simple to understand and easy to learn… but it was a total mess⁵.

Anyway, let’s come back in January 1997 and see what this feature looks like when it’s up-and-running.

Nope, now it’s pushed back to “the spring”.

Under Construction pages were all the rage back in the nineties. Everybody had one (or several), usually adorned with one or more of about a thousand different animated GIFs for that purpose.⁶

Building “in public” was an act of commitment, a statement of intent, and an act of acceptance of the incompleteness of a digital garden. They’re sort-of coming back into fashion in the interpersonal Web, with the “garden and stream” metaphor⁷ taking root. This isn’t anything new, of course – Mark Bernstein touched on the concepts in 1998 – but it’s not something that I can ever see returning to the “serious” modern corporate Web: but if you’ve seen a genuine, non-ironic “under construction” page published to a non-root page of a company’s website within the last decade, please let me know!

RSS doesn’t exist yet (although here’s a fun fact: the very first version of RSS came out of Netscape!). We’re just going to have to bookmark the page and check back later in the year, I guess…

Okay, so February clearly isn’t Spring, but they’ve updated the page… to add a search form.

It’s a genuine <form> tag, too, not one of those old-fashioned <isindex> tags you’d still sometimes find even as late as 1997. Interestingly, it specifies enctype="application/x-www-form-urlencoded". Today’s developers probably don’t think about the enctype attribute except when they’re doing a form that handles file uploads and they know they need to switch it to enctype="multipart/form-data", (or their framework does this automatically for them!).

But these aren’t the only options, and some older browsers at this time still defaulted to enctype="text/plain". So long as you’re using a POST and not GET method, the distinction is mostly academic, but if your backend CGI program anticipates that special characters will come-in encoded, back then you’d be wise to specify that you wanted URL-encoding or you might get a nasty surprise when somebody turns up using LMB or something equally-exotic.

Anyway, let’s come back in June. The content must surely be up by now:

Oh come on! Now we’re waiting until August?

At least the page isn’t abandoned. Somebody’s coming back and editing it from time to time to let us know about the still-ongoing series of delays. And that’s not a trivial task: this isn’t a CMS. They’re probably editing the .html file itself in their favourite text editor, then putting the appropriate file:// address into their copy of Netscape Navigator (and maybe other browsers) to test it, then uploading the file – probably using FTP – to the webserver… all the while thanking their lucky stars that they’ve only got the one page they need to change.

We didn’t have scripting languages like PHP yet, you see⁸. We didn’t really have static site generators. Most servers didn’t implement server-side includes. So if you had to make a change to every page on a site, for example editing the main navigation menu, you’d probably have to open and edit dozens or even hundreds of pages. Little wonder that framesets caught on, despite their (many) faults, with their ability to render your navigation separately from your page content.

Okay, let’s come back in August I guess:

Now we’re told that we’re to come back… in the Spring again? That could mean Spring 1998, I suppose… or it could just be that somebody accidentally re-uploaded an old copy of the page.

Hey: the footer’s gone too? This is clearly a partial re-upload: somebody realised they were accidentally overwriting the page with the previous-but-one version, hit “cancel” in their FTP client (or yanked the cable out of the wall), and assumed that they’d successfully stopped the upload before any damage was done.

They had not.

I didn’t mention that top menu, did I? It looks like it’s a series of links, styled to look like flat buttons, right? But you know that’s not possible because you can’t rely on having the right fonts available: plus you’d have to do some <table> trickery to lay it out, at which point you’d struggle to ensure that the menu was the same width as the banner above it. So how did they do it?

The menu is what’s known as a client-side imagemap. Here’s what the code looks like:

<a href="/comprod/columns/images/nav.map">
  <img src="/comprod/columns/images/websitestories_ban.gif" width=468 height=32 border=0 usemap="#maintopmap" ismap>
</a><map name="mainmap">
  <area coords="0,1,92,24" href="/comprod/columns/mainthing/index.html">
  <area coords="94,1,187,24" href="/comprod/columns/techvision/index.html">
  <area coords="189,1,278,24" href="/comprod/columns/webstories/index.html">
  <area coords="280,1,373,24" href="/comprod/columns/intranet/index.html">
  <area coords="375,1,467,24" href="/comprod/columns/newsgroup/index.html">
</map>

The image (which specifies border=0 because back then the default behaviour for graphical browser was to put a thick border around images within hyperlinks) says usemap="#maintopmap" to cross-reference the <map> below it, which defines rectangular areas on the image and where they link to, if you click them! This ingenious and popular approach meant that you could transmit a single image – saving on HTTP round-trips, which were relatively time-consuming before widespread adoption of HTTP/1.1‘s persistent connections – along with a little metadata to indicate which pixels linked to which pages.

The ismap attribute is provided as a fallback for browsers that didn’t yet support client-side image maps but did support server-side image maps: there were a few! When you put ismap on an image within a hyperlink, then when the image is clicked on the href has appended to it a query parameter of the form ?123,456, where those digits refer to the horizontal and vertical coordinates, from the top-left, of the pixel that was clicked on! These could then be decoded by the webserver via a .map file or handled by a CGI program. Server-side image maps were sometimes used where client-side maps were undesirable, e.g. when you want to record the actual coordinates picked in a spot-the-ball competition or where you don’t want to reveal in advance which hotspot leads to what destination, but mostly they were just used as a fallback.⁹

Both client-side and server-side image maps still function in every modern web browser, but I’ve not seen them used in the wild for a long time, not least because they’re hard (maybe impossible?) to make accessible and they can’t cope with images being resized, but also because nowadays if you really wanted to make an navigation “image” you’d probably cut it into a series of smaller images and make each its own link.

Anyway, let’s come back in October 1997 and see if they’ve fixed their now-incomplete page:

Oh, they have! From the look of things, they’ve re-written the page from scratch, replacing the version that got scrambled by that other employee. They’ve swapped out the banner and menu for a new design, replaced the footer, and now the content’s laid out in a pair of columns.

There’s still no reliable CSS, so you’re not looking at columns: (no implementations until 2014) nor at display: flex (2010) here. What you’re looking at is… a fixed-width <table> with a single row and three columns! Yes: three – the middle column is only 10 pixels wide and provides the “gap” between the two columns of text.¹⁰

This wasn’t Netscape’s only option, though. Did you ever hear of the <multicol> tag? It was the closest thing the early Web had to a semantically-sound, progressively-enhanced multi-column layout! The author of this page could have written this:

<multicol cols=2 gutter=10 width=301>
  <p>
    Want to create the best possible web site? Join us as we explore the newest
    technologies, discover the coolest tricks, and learn the best secrets for
    designing, building, and maintaining successful web sites.
  </p>
  <p>
    Members of the Netscape web site team, recognized designers, and technical
    experts will share their insights and experiences in Web Site Stories.
  </p>
</multicol>

That would have given them the exact same effect, but with less code and it would have degraded gracefully. Browsers ignore tags they don’t understand, so a browser without support for <multicol> would have simply rendered the two paragraphs one after the other. Genius!

So why didn’t they? Probably because <multicol> only ever worked in Netscape Navigator.

Introduced in 1996 for version 3.0, this feature was absolutely characteristic of the First Browser War. The two “superpowers”, Netscape and Microsoft, both engaged in unilateral changes to the HTML specification, adding new features and launching them without announcement in order to try to get the upper hand over the other. Both sides would often refuse to implement one-another’s new tags unless they were forced to by widespread adoption by page authors, instead promoting their own competing mechanisms¹¹.

Between adding this new language feature to their browser and writing this page, Netscape’s market share had fallen from around 80% to around 55%, and most of their losses were picked up by IE. Using <multicol> would have made their page look worse in Microsoft’s hot up-and-coming browser, which wouldn’t have helped them persuade more people to download a copy of Navigator and certainly wouldn’t be a good image on a soon-to-launch (any day now!) page about best-practice on the Web! So Netscape’s authors opted for the dominant, cross-platform solution on this page¹².

Anyway, let’s fast-forward a bit and see this project finally leave its “under construction” phase and launch!

Oh. It’s gone.

Sometime between October 1997 and February 1998 the long promised “Web Site Stories” section of Netscape Columns quietly disappeared from the website. Presumably, it never published a single article, instead remaining a perpetual “Coming Soon” page right up until the day it was deleted.

I’m not sure if there’s a better metaphor for Netscape’s general demeanour in 1998 – the year in which they finally ceased to be the dominant market leader in web browsers – than the quiet deletion of a page about how Netscape customers are making the best of the Web. This page might not have been important, or significant, or even completed, but its disappearance may represent Netscape’s refocus on trying to stay relevant in the face of existential threat.

Of course, Microsoft won the First Browser War. They did so by pouring a fortune’s worth of developer effort into staying technologically one-step ahead, refusing to adopt standards proposed by their rival, and their unprecedented decision to give away their browser for free¹³.

Footnotes

¹ Yes, we used to write “Web sites” as two words. We also used to consistently capitalise the words Web and Internet. Some of us still do so.

² In case it’s not clear, this blog post is going to be as much about little-known and archaic Web design techniques as it is about Netscape’s website.

³ This is a white lie. CSS was first proposed almost at the same time as the Web! Microsoft Internet Explorer was first to deliver a partial implementation of the initial standard, late in 1996, but Netscape dragged their heels, perhaps in part because they’d originally backed a competing standard called JavaScript Style Sheets (JSSS). JSSS had a lot going for it: if it had enjoyed widespread adoption, for example, we’d have had the equivalent of CSS variables a full twenty years earlier! In any case, back in 1996 you definitely wouldn’t want to rely on CSS support.

⁴ Wondering where the text and link colours come from? <body bgcolor="#ffffff" text="#000000" link="#0000ff" vlink="#ff0000" alink="#ff0000">. Yes really, that’s where we used to put our colours.

⁵ Personally, I really loved the aesthetic Netscape touted when using Times New Roman (or whatever serif font was available on your computer: webfonts weren’t a thing yet) with temporary tweaks to font sizes, and I copied it in some of my own sites. If you look back at my 2018 blog post celebrating two decades of blogging, where I’ve got a screenshot of my blog as it looked circa 1999, you’ll see that I used exactly this technique for the ordinal suffixes on my post dates! On the same post, you’ll see that I somewhat replicated the “feel” of it again in my 2011 design, this time using a stylesheet.

⁶ There’s a whole section of Cameron’s World dedicated to “under construction” banners, and that’s a beautiful thing!

⁷ The idea of “garden and stream” is that you publish early and often, refining as you go, in your garden, which can act as an extension of whatever notetaking system you use already, but publish mostly “finished” content to your (chronological) stream. I see an increasing number of IndieWeb bloggers going down this route, but I’m not convinced that it’s for me.

⁸ Another white lie. PHP was released way back in 1995 and even the very first version supported something a lot like server-side includes, using the syntax . But it was a little computationally-intensive to run willy-nilly.

⁹ Server-side imagemaps are enjoying a bit of a renaissance on .onion services, whose visitors often keep JavaScript disabled, to make image-based CAPTCHAs. Simply show the visitor an image and describe the bit you want them to click on, e.g. “the blue pentagon with one side missing”, then compare the coordinates of the pixel they click on to the knowledge of the right answer. Highly-inaccessible, of course, but innovative from a purely-technical perspective.

¹⁰ Nowadays, use of tables for layout – or, indeed, for anything other than tabular data – is very-much frowned upon: it’s often bad for accessibility and responsive design. But back before we had the features granted to us by the modern Web, it was literally the only way to get content to appear side-by-side on a page, and designers got incredibly creative about how they ~~mis~~used tables to lay out content, especially as browsers became more-sophisticated and began to support cells that spanned multiple rows or columns, tables “nested” within one another, and background images.

¹¹ It was a horrible time to be a web developer: having to make hacky workarounds in order to make use of the latest features but still support the widest array of browsers. But I’d still take that over the horrors of rendering engine monoculture!

¹² Or maybe they didn’t even think about it and just copy-pasted from somewhere else on their site. I’m speculating.

¹³ This turned out to be the master-stroke: not only did it partially-extricate Microsoft from their agreement with Spyglass Inc., who licensed their browser engine to Microsoft in exchange for a percentage of sales value, but once Microsoft started bundling Internet Explorer with Windows it meant that virtually every computer came with their browser factory-installed! This strategy kept Microsoft on top until Firefox and Google Chrome kicked-off the Second Browser War in the early 2010s. But that’s another story.

Chrome is the new Safari. And so are Edge and Firefox.

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

…

I am not saying Apple’s approach is wrong. What Apple is doing is important too, and I applaud the work Apple has been doing in improving privacy on the web.

But it can’t be the only priority. Just imagine what the web would look like if every browser would have taken that approach 20 years ago.

Actually, no, don’t imagine it all. Just think back at Internet Explorer 6; that is what the web looked like 20 years ago.

…

There can only be one proper solution: Apple needs to open up their App Store to browsers with other rendering engines. Scrap rule 2.5.6 and allow other browsers on iOS and let them genuinely compete.

Niels Leenheer

As a reminder, Safari is the only web browser on iOS. You might have been fooled to think otherwise by the appearance of other browsers in the App Store or perhaps by last year’s update that made it possible at long last to change the default browser, but it’s all an illusion. Beneath the mask, all browsers on iOS are powered by Safari’s WebKit, or else they’re booted from the App Store.

Neils’ comparison to Internet Explorer 6 is a good one, but as I’ve long pointed out, there’s a big and important difference between Microsoft’s story during the First Browser War and Apple’s today:

Microsoft bundled Internet Explorer with Windows, raising the barrier to using a different web browser, which a court ruled as monopolistic and recommended that Microsoft be broken into smaller companies (this recommendation was scaled back on appeal).
Apple bundle Safari with iOS and prohibit the use of any other browser’s rendering engine on that platform, preventing the use of a different web browser. Third-party applications have been available for iOS – except, specifically, other browser rendering engines and a handful of other things – for 13 years now, but it still seems unlikely we’ll see an antitrust case anytime soon.

Apple are holding the Web back… and getting away with it.

<blink> and <marquee>

I was chatting with a fellow web developer recently and made a joke about the HTML <blink> and <marquee> tags, only to discover that he had no idea what I was talking about. They’re a part of web history that’s fallen off the radar and younger developers are unlikely to have ever come across them. But for a little while, back in the 90s, they were a big deal.

Macromedia Dreamweaver 3 code editor window showing a <h2> heading wrapped in <marquee> and <blink> tags, for emphasis. — Even Macromedia Dreamweaver, which embodied the essence of 1990s web design, seemed to treat wrapping `<blink>` in `<marquee>` as an antipattern.

Invention of the <blink> element is often credited to Lou Montulli, who wrote pioneering web browser Lynx before being joining Netscape in 1994. He insists that he didn’t write any of the code that eventually became the first implementation of <blink>. Instead, he claims: while out at a bar (on the evening he’d first meet his wife!), he pointed out that many of the fancy new stylistic elements the other Netscape engineers were proposing wouldn’t work in Lynx, which is a text-only browser. The fanciest conceivable effect that would work across both browsers would be making the text flash on and off, he joked. Then another engineer – who he doesn’t identify – pulled a late night hack session and added it.

And so it was that when Netscape Navigator 2.0 was released in 1995 it added support for the <blink> tag. Also animated GIFs and the first inklings of JavaScript, which collectively would go on to define the “personal website” experience for years to come. Here’s how you’d use it:

<BLINK>This is my blinking text!</BLINK>

With no attributes, it was clear from the outset that this tag was supposed to be a joke. By the time HTML4 was published as a a recommendation two years later, it was documented as being a joke. But the Web of the late 1990s saw it used a lot. If you wanted somebody to notice the “latest updates” section on your personal home page, you’d wrap a <blink> tag around the title (or, if you were a sadist, the entire block).

Cameron's World website, screenshot, showing GIFS and bright pallette — If you missed this particular chapter of the Web’s history, you can simulate it at Cameron’s World.

In the same year as Netscape Navigator 2.0 was released, Microsoft released Internet Explorer 2.0. At this point, Internet Explorer was still very-much playing catch-up with the features the Netscape team had implemented, but clearly some senior Microsoft engineer took a look at the <blink> tag, refused to play along with the joke, but had an innovation of their own: the <marquee> tag! It had a whole suite of attributes to control the scroll direction, speed, and whether it looped or bounced backwards and forwards. While <blink> encouraged disgusting and inaccessible design as a joke, <marquee> did it on purpose.

<MARQUEE>Oh my god this still works in most modern browsers!</MARQUEE>

Oh my god this still works in most modern browsers!

If you see the text above moving… you’re looking at a living fossil in browser history.

But here’s the interesting bit: for a while in the late 1990s, it became a somewhat common practice to wrap content that you wanted to emphasise with animation in both a <blink> and a <marquee> tag. That way, the Netscape users would see it flash, the IE users would see it scroll or bounce. Like this:

<MARQUEE><BLINK>This is my really important message!</BLINK></MARQUEE>

Internet Explorer 5 showing a marquee effect. — Wrap a `<blink>` inside a `<marquee>` and IE users will see the marquee. Delightful.

The web has always been built on Postel’s Law: a web browser should assume that it won’t understand everything it reads, but it should provide a best-effort rendering for the benefit of its user anyway. Ever wondered why the modern <video> element is a block rather than a self-closing tag? It’s so you can embed within it code that an earlier browser – one that doesn’t understand <video> – can read (a browser’s default state when seeing a new element it doesn’t understand is to ignore it and carry on). So embedding a <blink> in a <marquee> gave you the best of both worlds, right? (welll…)

Netscape Navigator 5 showing a blink effect. — Wrap a `<blink>` inside a `<marquee>` and Netscape users will see the blink. Joy.

Better yet, you were safe in the knowledge that anybody using a browser that didn’t understand either of these tags could still read your content. Used properly, the web is about progressive enhancement. Implement for everybody, enhance for those who support the shiny features. JavaScript and CSS can be applied with the same rules, and doing so pays dividends in maintainability and accessibility (though, sadly, that doesn’t stop people writing sites that needlessly require these technologies).

Opera 5 showing no blinking nor marquee text. — Personally, I was a (paying! – back when people used to pay for web browsers!) Opera user so I mostly saw neither `<blink>` nor `<marquee>` elements. I don’t feel like I missed out.

I remember, though, the first time I tried Netscape 7, in 2002. Netscape 7 and its close descendent are, as far as I can tell, the only web browsers to support both <blink> and <marquee>. Even then, it was picky about the order in which they were presented and the elements wrapped-within them. But support was good enough that some people’s personal web pages suddenly began to exhibit the most ugly effect imaginable: the combination of both scrolling and flashing text.

Netscape 7 showing text that both blinks and marquee-scrolls. — If Netscape 7’s UI didn’t already make your eyes bleed (I’ve toned it down here by installing the “classic skin”), its simultaneous rendering of `<blink>` and `<marquee>` would.

The <blink> tag is very-definitely dead (hurrah!), but you can bring it back with pure CSS if you must. <marquee>, amazingly, still survives, not only in polyfills but natively, as you might be able to see above. However, if you’re in any doubt as to whether or not you should use it: you shouldn’t. If you’re looking for digital nostalgia, there’s a whole rabbit hole to dive down, but you don’t need to inflict <marquee> on the rest of us.

Evolving Computer Words: “GIF”

This is part of a series of posts on computer terminology whose popular meaning – determined by surveying my friends – has significantly diverged from its original/technical one. Read more evolving words…

The language we use is always changing, like how the word “cute” was originally a truncation of the word “acute”, which you’d use to describe somebody who was sharp-witted, as in “don’t get cute with me”. Nowadays, we use it when describing adorable things, like the subject of this GIF:

[Animated GIF] Puppy flumps onto a human. — Cute, but not acute.

But hang on a minute: that’s another word that’s changed meaning: GIF. Want to see how?

GIF

What people think it means

File format (or the files themselves) designed for animations and transparency. Or: any animation without sound.

What it originally meant

File format designed for efficient colour images. Animation was secondary; transparency was an afterthought.

The Past

Back in the 1980s cyberspace was in its infancy. Sir Tim hadn’t yet dreamed up the Web, and the Internet wasn’t something that most people could connect to, and bulletin board systems (BBSes) – dial-up services, often local or regional, sometimes connected to one another in one of a variety of ways – dominated the scene. Larger services like CompuServe acted a little like huge BBSes but with dial-up nodes in multiple countries, helping to bridge the international gaps and provide a lower learning curve than the smaller boards (albeit for a hefty monthly fee in addition to the costs of the calls). These services would later go on to double as, and eventually become exclusively, Internet Service Providers, but for the time being they were a force unto themselves.

In 1987, CompuServe were about to start rolling out colour graphics as a new feature, but needed a new graphics format to support that. Their engineer Steve Wilhite had the idea for a bitmap image format backed by LZW compression and called it GIF, for Graphics Interchange Format. Each image could be composed of multiple frames each having up to 256 distinct colours (hence the common mistaken belief that a GIF can only have 256 colours). The nature of the palette system and compression algorithm made GIF a particularly efficient format for (still) images with solid contiguous blocks of colour, like logos and diagrams, but generally underperformed against cosine-transfer-based algorithms like JPEG/JFIF for images with gradients (like most photos).

GIF with more than 256 colours. — This animated GIF (of course) shows how it’s possible to have more than 256 colours in a GIF by separating it into multiple non-temporal frames.

GIF would go on to become most famous for two things, neither of which it was capable of upon its initial release: binary transparency (having “see through” bits, which made it an excellent choice for use on Web pages with background images or non-static background colours; these would become popular in the mid-1990s) and animation. Animation involves adding a series of frames which overlay one another in sequence: extensions to the format in 1989 allowed the creator to specify the duration of each frame, making the feature useful (prior to this, they would be displayed as fast as they could be downloaded and interpreted!). In 1995, Netscape added a custom extension to GIF to allow them to loop (either a specified number of times or indefinitely) and this proved so popular that virtually all other software followed suit, but it’s worth noting that “looping” GIFs have never been part of the official standard!

Hex editor view of a GIF file's metadata section, showing Netscape headers. — Open almost any animated GIF file in a hex editor and you’ll see the word `NETSCAPE2.0`; evidence of Netscape’s role in making animated GIFs what they are today.

Compatibility was an issue. For a period during the mid-nineties it was quite possible that among the visitors to your website there would be a mixture of:

people who wouldn’t see your GIFs at all, owing to browser, bandwidth, preference, or accessibility limitations,
people who would only see the first frame of your animated GIFs, because their browser didn’t support animation,
people who would see your animation play once, because their browser didn’t support looping, and
people who would see your GIFs as you intended, fully looping

This made it hard to depend upon GIFs without carefully considering their use. But people still did, and they just stuck a button on to warn people, as if that made up for it. All of this has happened before, etc.

In any case: as better, newer standards like PNG came to dominate the Web’s need for lossless static (optionally transparent) image transmission, the only thing GIFs remained good for was animation. Standards like APNG/MNG failed to get off the ground, and so GIFs remained the dominant animated-image standard. As Internet connections became faster and faster in the 2000s, they experienced a resurgence in popularity. The Web didn’t yet have the <video> element and so embedding videos on pages required a mixture of at least two of <object>, <embed>, Flash, and black magic… but animated GIFs just worked and soon appeared everywhere.

Magic. — How animation online *really* works.

The Future

Nowadays, when people talk about GIFs, they often don’t actually mean GIFs! If you see a GIF on Giphy or WhatsApp, you’re probably actually seeing an MPEG-4 video file with no audio track! Now that Web video is widely-supported, service providers know that they can save on bandwidth by delivering you actual videos even when you expect a GIF. More than ever before, GIF has become a byword for short, often-looping Internet animations without sound… even though that’s got little to do with the underlying file format that the name implies.

What's a web page? Something ducks walk on? — What’s a web page? What’s anything?

Verdict: We still can’t agree on whether to pronounce it with a soft-G (“jif”), as Wilhite intended, or with a hard-G, as any sane person would, but it seems that GIFs are here to stay in name even if not in form. And that’s okay. I guess.

Edge Blink and Progressive Web Apps

As I’ve previously mentioned (sadly), Microsoft Edge is to drop its own rendering engine EdgeHTML and replace it with Blink, Google’s one (more of my and others related sadness here, here, here, and here). Earlier this month, Microsoft made available the first prerelease versions of the browser, and I gave it a go.

Edge Canary 75.0.131.0 dev — At a glance, it looks exactly like you’d expect a Microsoft reskin of Chrome to look, right down to the harmonised version numbers.

All of the Chrome-like features you’d expect are there, including support for Chrome plugins, but Microsoft have also clearly worked to try to integrate as much as possible of the important features that they felt were distinct to Edge in there, too. For example, Edge Blink supports SmartScreen filtering and uses Microsoft accounts for sync, and Incognito is of course rebranded InPrivate.

But what really interested me was the approach that Edge Dev has taken with Progressive Web Apps.

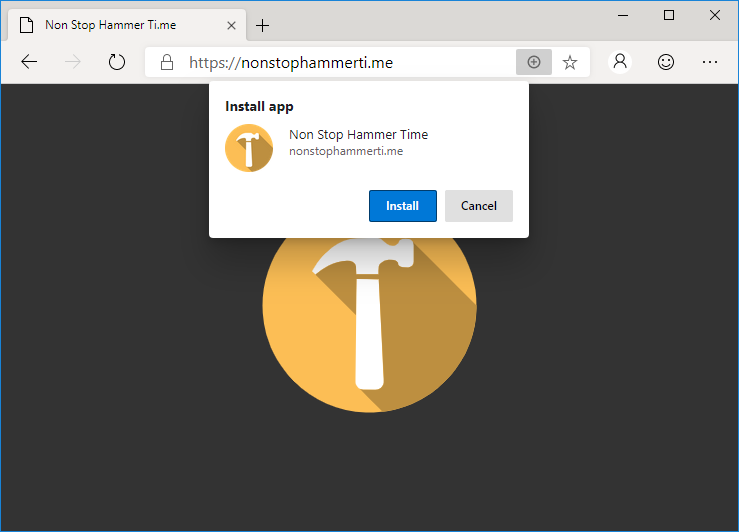

Installing NonStopHammerTi.me as a standalone PWA in Edge — NonStopHammerTi.me might not be the best PWA in the world, but it’s the best one linked from *this* blog post.

Edge Dev may go further than any other mainstream browser in its efforts to make Progressive Web Apps visible to the user, putting a plus sign (and sometimes an extended install prompt) right in the address bar, rather than burying it deep in a menu. Once installed, Edge PWAs “just work” in exactly the way that PWAs ought to, providing a simple and powerful user experience. Unlike some browsers, which make installing PWAs on mobile devices far easier than on desktops, presumably in a misguided belief in the importance of mobile “app culture”, it doesn’t discriminate against desktop users. It’s a slick and simple user experience all over.

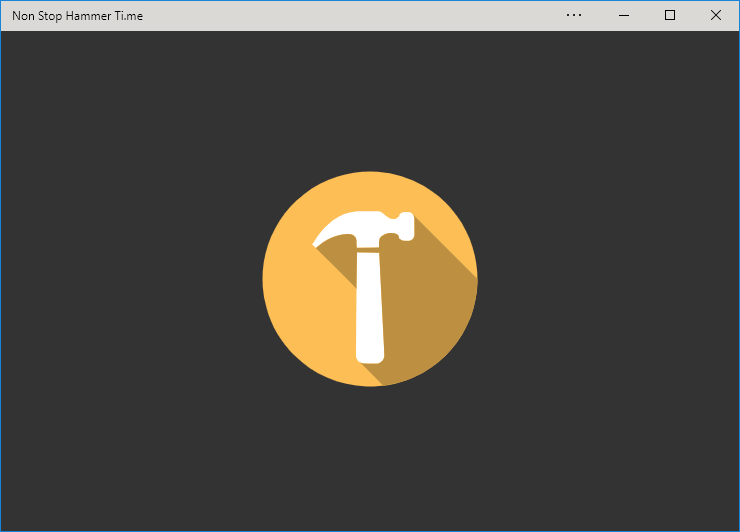

NonStopHammerTi.me running as a standalone PWA in Edge Dev. — Once installed, Edge immediately runs your new app (closing the tab it formerly occupied) and adds shortcut icons.

Feature support is stronger than it is for Progressive Web Apps delivered as standalone apps via the Windows Store, too, with the engine not falling over at the first sign of a modal dialog for example. Hopefully (as I support one of these hybrid apps!) these too will begin to be handled properly when Edge Dev eventually achieves mainstream availability.

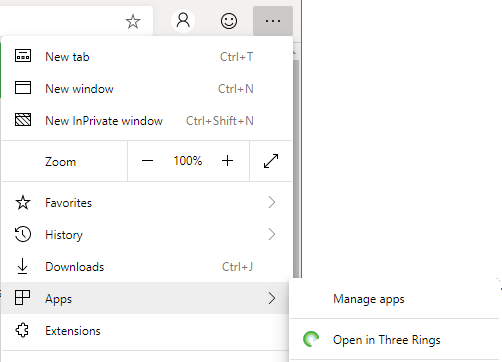

Edge provides an option to open a page in its sites' associated PWA, if installed. — If you’ve got the “app” version installed, Edge provides a menu option to switch to that from any page on the conventional site (and cookies/state is retained across both).

But perhaps most-impressive is Edge Dev’s respect for the importance of URLs. If, having installed the progressive “app” version of a site you subsequently revisit any address within its scope, you can switch to the app version via a link in the menu. I’d rather have seen a nudge in the address bar, where the user might expect to see such things (based on that being where the original install icon was), but this is still a great feature… especially given that cookies and other state maintainers are shared between the browser, meaning that performing such a switch in a properly-made application will result in the user carrying on from almost exactly where they left off.

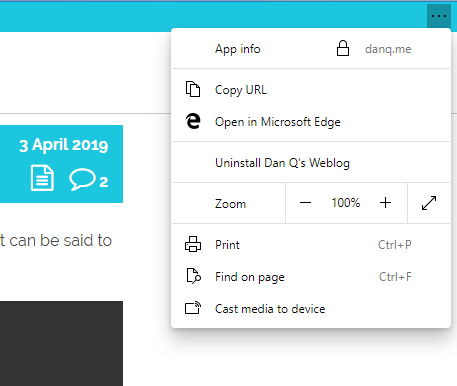

An Edge PWA showing its "Copy URL" feature. — Unlike virtually every other PWA engine, Edge Dev’s provides a “Copy URL” feature even to apps without address bars, which is a killer feature for sharability.

Similarly, and also uncommonly forward-thinking, Progressive Web Apps installed as standalone applications from Edge Dev enjoy a “copy URL” option in their menu, even if the app runs without an address bar (e.g. as a result of a "display": "standalone" directive in the manifest.json). This is a huge boost to sharability and is enormously (and unusually) respectful of the fact that addresses are the Web’s killer feature! Furthermore, it respects the users’ choice to operate their “apps” in whatever way suits them best: in a browser (even a competing browser!), on their mobile device, or wherever. Well done, Microsoft!

I’m still very sad overall that Edge is becoming part of the Chromium family of browsers. But if the silver lining is that we get a pioneering and powerful new Progressive Web App engine then it can’t be all bad, can it?

Microsoft exec riles Firefox faithful by telling Mozilla to embrace Chrome – CNET

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

Microsoft staffer pokes finger into Twitter beehive by saying Firefox should join Chrome, not fight it (CNET)

Debate: Does Mozilla have more influence as a Chrome rival or ally?

…

“Thought: It’s time for @mozilla to get down from their philosophical ivory tower. The web is dominated by Chromium, if they really *cared* about the web they would be contributing instead of building a parallel universe that’s used by less than 5%?” He made it clear the viewpoint was his personal opinion, not Microsoft’s position.

Mozilla is indeed in a sticky situation, trying to improve the web when it comes to things like openness, privacy and new standards. That mission is harder with declining influence, though, and Firefox now accounts for 5 percent of web usage, according to analytics firm StatCounter. But without independent efforts like Firefox, and to an extent Apple’s Safari, the web will stop being an independent software foundation and become whatever Google says it is.

And plenty of people don’t like that one bit. Indeed, Mozilla defenders see the nonprofit’s mission as even more important with Chrome’s dominance.

“I couldn’t disagree with you more. It precisely *because* Chromium has such a large marketshare that is vital for Mozilla (or anyone else) to battle for diversity,” tweeted web developer Jeremy Keith in a response. “‘Building a parallel universe’? That *is* the contribution.”

…

Stephen Shankland (CNET)

Note #12352

We need a movement of developers and enthusiasts who loudly, proudly, use @mozilla @firefox as their primary browser. On our desktops and our laptops. We test in it, extend it, contribute to it. But we never, ever, take it for granted.

The moment I came to this conclusion. Background: 1, 2, 3, 4, 5, 6, and with thanks to Jeremy Keith for helping me see it.

Browsers

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

by Jeremy Keith

I’ve been using Firefox as my main browser for a while now, and I can heartily recommend it. You should try it (and maybe talk to your relatives about it at Christmas). At this point, which browser you use no longer feels like it’s just about personal choice—it feels part of something bigger; it’s about the shape of the web we want.

Jeremy Keith

Very much this. I’ve been using Firefox as my primary browser since I began (gradually) switching from Opera in 2005, but it’s never been more important than it is now that people know about and use Firefox. The rest of his post, which summarises the news I was talking about the other week and everything people have said since, is well-worth reading too.

We need a new movement: a movement of developers, influencers, and tech enthusiasts who loudly, proudly, use Firefox as their primary web browser. We use it on our desktops. We use it on our laptops. We use it on our phones. All of us test sites in it. Some of us write plugins for it. The bravest of us write code for it. But none of us, not one, takes it for granted.

Chromedge and headcount

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

So Microsoft is going to retire EdgeHTML and use Chromium instead for Edge while not really answering the question if the web [is] better off with less engine diversity. This upset people, and Mozilla, especially, is worrying about the future:

Will Microsoft’s decision make it harder for Firefox to prosper? It could. Making Google more powerful is risky on many fronts. […] If one product like Chromium has enough market share, then it becomes easier for web developers and businesses to decide not to worry if their services and sites work with anything other than Chromium. That’s what happened when Microsoft had a monopoly on browsers in the early 2000s before Firefox was released. And it could happen again.

Before you lament the return to a Microsoft-like monopoly, remember what happened to Microsoft’s monopoly. In fact, remember what happened to the lineal descendant of that monopoly just last week. Near-monopolies do not necessarily mean the end of the web.

…

Peter-Paul Koch (QuirksMode)

Yet more in the “EdgeHTML to be replaced by Chromium” story, on which I already shared my opinions. Peter-Paul does a good job of illustrating the differences between the reduction of diversity in/increasing monopolisation of the browser space this time around and last time (when Internet Explorer 6 became the de facto standard way to surf the Web), using it to provide a slightly less-pessimistic outlook (albeit one not without its warnings).

Browser diversity starts with us

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

Jeffrey Zeldman (zeldman.com)

…

Even if you love Chrome, adore Gmail, and live in Google Docs or Analytics, no single company, let alone a user-tracking advertising giant, should control the internet.

…

Diversity is as good for the web as it is for society. And it starts with us.

Jeffrey Zeldman

Yet more fallout from the Microsoft announcement that Edge will switch to Chromium, which I discussed earlier. This one’s pretty inspirational, and gives a good reminder about what our responsibilities are to the Web, as its developers.

Edge may be becoming Chromium-powered, and that’s terrible

Microsoft engineers have been spotted committing code to Chromium, the backend of Google Chrome and many other web browsers. This, among other things, has lead to speculation that Microsoft’s browser, Edge, might be planned to switch from its current rendering engine (EdgeHTML) to Blink (Chromium’s). This is bad news.

This page in Microsoft Edge — This post, as it would appear if you were looking at it in Edge. Which you might be, I suppose.

The younger generation of web developers are likely to hail this as good news: one fewer engine to develop for and test in, they’re all already using Chrome or something similar (and certainly not Edge) for development and debugging anyway, etc. The problem comes perhaps because they’re too young to remember the First Browser War and its aftermath. Let me summarise:

Once upon a time – let’s call it the mid-1990s – there were several web browsers: Netscape Navigator, Internet Explorer, Opera, etc. They all used different rendering engines and so development was sometimes a bit of a pain, but only if you wanted to use the latest most cutting-edge features: if you were happy with the standard, established features of the Web then your site would work anywhere, as has always been the case.
Then, everybody starting using just one browser: following some shady dealings and monopoly abuse, 90%+ of Web users started using just one web browser, Internet Explorer. By the time anybody took notice, their rivals had been economically crippled beyond any reasonable chance of recovery, but the worst had yet to come…
Developers started targeting only that one browser: instead of making websites, developers started making “Internet Explorer sites” which were only tested in that one browser or, worse yet, only worked at all in that browser, actively undermining the Web’s position as an open platform. As the grip of the monopoly grew tighter, technological innovation was centred around this single platform, leading to decade-long knock-on effects.
The Web ceased to grow new features: from the release of Internet Explorer 6 there were no significant developments in the technology of the Web for many years. The lack of competition pushed us into a period of stagnation. A decade and a half later, we’re only just (finally) finishing shaking off this unpleasant bit of our history.

History looks set to repeat itself. Substitute Chrome in place of Internet Explorer and update the references to other web browsers and the steps above could be our future history, too. Right now, we’re somewhere in or around step #2 – Chrome is the dominant browser – and we’re starting to see the beginnings of step #3: more and more “Chrome only” sites. More-alarmingly this time around, Google’s position in providing many major Web services allows them to “push” even harder for this kind of change, even just subtly: if you make the switch from Chrome to e.g. Firefox (and you absolutely should) you might find that YouTube runs slower for you because YouTube’s (Google) engineers favour Google’s web browser.

Chrome is becoming the new Internet Explorer 6, and that’s a huge problem. Rachel Nabors wrote in her excellent article The Ecological Impact of Browser Diversity:

So these are the three browser engines we have: WebKit/Blink, Gecko, and EdgeHTML. We are unlikely to get any brand new bloodlines in the foreseeable future. This is it.

If we lose one of those browser engines, we lose its lineage, every permutation of that engine that would follow, and the unique takes on the Web it could allow for.

And it’s not likely to be replaced.

Imagine a planet populated only by hummingbirds, dolphins, and horses. Say all the dolphins died out. In the far, far future, hummingbirds or horses could evolve into something that could swim in the ocean like a dolphin. Indeed, ichthyosaurs in the era of dinosaurs looked much like dolphins. But that creature would be very different from a true dolphin: even ichthyosaurs never developed echolocation. We would wait a very long time (possibly forever) for a bloodline to evolve the traits we already have present in other bloodlines today. So, why is it ok to stand by or even encourage the extinction of one of these valuable, unique lineages?

We have already lost one.

We used to have four major rendering engines, but Opera halted development of its own rendering engine Presto before adopting Blink.

Three left. Spend them wisely.

As much as I don’t like having to work-around the quirks in all of the different browsers I test in, daily, it’s way preferable to a return to the dark days of the Web circa most of the first decade of this century. Please help keep browsers diverse: nobody wants to start seeing this shit –

Update: this is now confirmed. A sad day for the Web.

Warp and Weft?

This is a repost promoting content originally published elsewhere. See more things Dan's reposted.

Warp and Weft by Paul Robert Lloyd (paulrobertlloyd.com)

Earlier this month I had the good fortune to attend Material, a conference that explores the concept of the web as a material and all the intrinsic characteristics that entails. The variety of talks provided new perspectives on what it means to build for – and with – the web, and prompted me to …

…

What it means for something to be of the web has been discussed many times before. While the technical test can be reasonably objective – is it addressable, accessible and available – culturally it remains harder to judge. But I don’t know about you, I’ve found that certain websites feel more ‘webby’ than others.

…

Paul Robert Lloyd

Despite being nonspecific on the nature of the feeling he describes, Paul hits the nail on the head. Your favourite (non-Medium) blog or guru site almost certainly has that feel of being “of the web”. Your favourite API-less single-page app (with the growing “please use in Chrome” banner) almost certainly does not.

20 Years Of Blogging

As of next week, I’ll have been blogging for 20 years, or about 54% of my life. How did that happen?

Castle of the Four Winds in early 1999. — I’d been “blogging” – not that we called it that, yet – since late 1998, but my original collection of content-mangling Perl scripts wasn’t all that. More history…

The mid-1990s were a very different time for the World Wide Web (yes, we still called it that, and sometimes we even described its use as “surfing”). Going “on the Internet” was a calculated and deliberate action requiring tying up your phone line, minutes of “connecting” along with all of the associated screeching sounds if you hadn’t turned off your modem’s loudspeaker, and you’d typically be paying twice for the experience: both a monthly fee to your ISP for the service and a per-minute charge to your phone company for the call.

It was into this environment that in 1994 I published my first web pages: as far as I know, nothing remains of them now. It wasn’t until 1998 that I signed up an account with UserActive (whose website looks almost the same today as it did then) who offered economical subdomain hosting with shell and CGI support and launched “Castle of the Four Winds”, a set of vanity pages that included my first blog.

Except I didn’t call it a “blog”, of course, because it wasn’t until the following year that Peter Merholz invented the word (he also commemorated 20 years of blogging, this year). I didn’t even call it a “weblog”, because that word was still relatively new and I wasn’t hip enough to be around people who said it, yet. It was self-described as an “online diary”, a name which only served to reinforce the notion that I was writing principally for myself. In fact, it wasn’t until mid-1999 that I discovered that it was being more-widely read than just by me and my circle of friends when I attracted a stalker who travelled across the UK to try to “surprise” me by turning up at places she expected to find me, based on what I’d written online… which was exactly as creepy as it sounds.

AvAngel.com, my second vanity site, as seen in 2001 — AvAngel.com

While the world began to panic that the coming millennium was going to break all of the computers, I migrated Castle of the Four Winds’ content into AvAngel.com, a joint vanity site venture with my friend Andy. Aside from its additional content (purity tests, funny stuff, risqué e-cards), what we hosted was mostly the same old stuff, and I continued to write snippets about my life in what was now quite-clearly a “blog-like” format, with the most-recent posts at the top and separate pages for content too old for the front page. Looking back, there’s still a certain naivety to these posts which exemplify the youth of the Web. For example, posts routinely referenced my friends by their email addresses, because spam was yet to become a big enough problem that people didn’t much mind if you put their email address on a public webpage somewhere, and because email addresses still carried with them a feeling of anonymity that ceased to be the case when we started using them for important things.

Technologically-speaking, too, this was a simpler time. Neither Javascript nor CSS support was widespread (nor consistently-standardised) enough to rely upon for anything other than the simplest progressive enhancement unless you were willing to “pick a side” in what we’d subsequently call the first browser war and put one of those apalling “best viewed in Internet Explorer” or “best viewed in Netscape Navigator” banners on your site. I’ve always been a believer in a universal web (and my primary browser at the time was Opera, anyway, as it mostly-remained until Opera went wrong in 2013), and I didn’t have the energy to write everything twice, so our cool/dynamic functionality came mostly from back-end (e.g. Perl, PHP) technologies.

Meanwhile, during my initial months as a student in Aberystwyth, I wrote a series of emails to friends back home entitled “Cool And Interesting Thing Of The Day To Do At The University Of Wales, Aberystwyth”, and put copies of each onto my student webspace; I’ve since recovered these and integrated them into my unified blog.

The first version of Scatmania.org. — Scatmania.org

In 2002 I’d bought the domain name scatmania.org – a reference to my university halls of residence nickname “Scatman Dan”; I genuinely didn’t consider the possibility that the name might be considered scatalogical until later on. As I wanted to continue my blogging at an address that felt like it was solely mine (AvAngel.com having been originally shared with a friend, although in practice over time it became associated only with me), this seemed like a good domain upon which to relaunch. And so, in mid-2003 and powered by a short-lived and ill-fated blogging engine called Flip I did exactly that. WordPress, to which I’d subsequently migrate, hadn’t been invented yet and it wasn’t clear whether its predecessor, b2/cafelog, would survive the troubles its author was experiencing.

From this point on, any web address for any post made to my blog still works to this day, despite multiple technological and infrastructural changes to my blog (and some domain name shenanigans!) in the meantime. I’d come to be a big believer in the mantra that cool URIs don’t change: something that as far as possible I’ve committed to trying to upload in my blogging, my archiving, and my paid work since then. I’m moderately confident that all extant links on the web that point to earlier posts are all under my control so they can (and in most cases have) been fixed already, so I’m pretty close to having all my permalink URIs be “cool”, for now. You might hit a short chain of redirects, but you’ll get to where you’re going.

And everything was fine, until one day in 2004 when it wasn’t. The server hosting scatmania.org died in a very bad way, and because my backup strategy was woefully inadequate, I lost a lot of content. I’ve recovered quite a lot of it and put it back in-place, but some is probably gone forever.

The resurrected site was powered by WordPress, and this was the first time that live database queries had been used to power my blog. Occasionally, these days, when talking to younger, cooler developers, I’m tempted to follow the hip trend of reimplementing my blog as a static site, compiling a stack of host-anywhere HTML files based upon whatever-structure-I-like at the “backend”… but then I remember that I basically did that already for six years and I’m far happier with my web presence today. I’ve nothing against static site systems (I’m quite partial to Middleman, myself, although I’m also fond of Hugo) but they’re not right for this site, right now.

IndieAuth hadn’t been invented yet, but I was quite keen on the ideals of OpenID (I still am, really), and so I implemented what was probably the first viable “install-anywhere” implementation of OpenID for WordPress – you can see part of it functioning in the top-right of the screenshot above, where my (copious, at that time) LiveJournal-using friends were encouraged to sign in to my blog using their LiveJournal identity. Nowadays, the majority of the WordPress plugins I use are ones I’ve written myself: my blog is powered by a CMS that’s more “mine” than not!

Over the course of the first decade of my blogging, a few trends had become apparent in my technical choices. For example:

I’ve always self-hosted my blog, rather than relying on a “blog as a service” or siloed social media platform like WordPress.com, Blogger, or LiveJournal.
I’ve preferred an approach of storing the “master” copy of my content on my own site and then (sometimes) syndicating it elsewhere: for example, for the benefit of my friends who during their University years maintained a LiveJournal, for many years I had my blog cross-post to a LiveJournal account (and backfeed copies of comments back to my site).
I’ve favoured web standards that provided maximum interoperability (e.g. RSS with full content) and longevity (serving HTML pages from permanent URLs, adding “extra” functionality via progressive enhancement so as to ensure that content functioned e.g. without Javascript, with CSS disabled or the specification evolved, etc.).

These were deliberate choices, but they didn’t require much consideration: growing up with a Web far less-sophisticated than today’s (e.g. truly stateless prior to the advent of HTTP cookies) and seeing the chaos caused during the first browser war and the period of stagnation that followed, these choices seemed intuitive.

(Perhaps it’s not so much of a coincidence that I’ve found myself working at a library: maybe I’ve secretly been a hobbyist archivist all along!)

Third major design reboot of scatmania.org — That body font is plain old Verdana, you know: I’ve always felt that it (plus full justification) was the right choice for this particular design, even though I regret other parts of it (like the brightness!).

As you’d expect from a blog covering a period from somebody’s teen years through to their late thirties, there’ve been significant changes in the kinds of content I’ve posted (and the tone with which I’ve done so) over the years, too. If you dip into 2003, for example, you’ll see the results of quiz memes and unqualified daily minutiae alongside actual considered content. Go back further, to early 1999, and it is (at best) meaningless wittering about the day-to-day life of a teenage student. It took until around 2009/2010 before I actually started focussing on writing content that specifically might be enjoyable for others to read (even where that content was frankly silly) and only far more-recently-still that I’ve committed to the “mostly technical stuff, ocassional bits of ‘life’ stuff” focus that I have today.

I say “committed”, but of course I’m fully aware that whatever this blog is now, it’ll doubtless be something somewhat different if I’m still writing it in another two decades…

Once I reached the 2010s I started actually taking the time to think about the design of my blog and its meaning. Conceptually, all of my content is data-driven: database tables full of different “kinds” of content and associated metadata, and that’s pretty-much ideal – it provides a strong separation between content and presentation and makes it possible to make significant design changes with less work than might otherwise be expected. I’ve also always generally favoured a separation of concerns in web development and so I’m not a fan of CSS design methodologies that encourage class names describing how things should appear, like Atomic CSS. Even where it results in a performance hit, I’d far rather use CSS classes to describe what things are or represent. The single biggest problem with this approach, to my mind, is that it violates the DRY principle… but that’s something that your CSS preprocessor’s there to fix for you, isn’t it?

But despite this philosophical outlook on the appropriate gap between content and presentation, it took until about 2010 before I actually attached any real significance to the presentation at all! Until this point, I’d considered myself to have been more of a back-end than a front-end engineer, and felt that the most-important thing was to get the content out there via an appropriate medium. After all, a site without content isn’t a site at all, but a site without design is (or at least should be) still intelligible thanks to browser defaults! Remember, again, that I started web development at a time when stylesheets didn’t exist at all.

My previous implementations of my blog design had used simple designs, often adapted from open-source templates, in an effort to get them deployed as quickly as possible and move on to the next task, but now, I felt, it was time to do a little more.

Scatmania.org in 2010 — My 2010 relaunch put far more focus on the graphical design elements of my blog as well as providing a fully responsive design based on (then-new) CSS media queries. Alongside my focus on separation of concerns in web development, I’m also quite opinionated on the idea that a responsive design has almost always been a superior solution to having a separate “mobile site”.

For a few years, I was producing a new theme once per year. I experimented with different colours, fonts, and layouts, and decided (after some ad-hoc A/B testing) that my audience was better-served by a “front” page than by being dropped directly into my blog archives as had previously been the case. Highlighting the latest few – and especially the very-latest – post and other recent content increased the number of posts that a visitor would be likely to engage with in a single visit. I’ve always presumed that the reason for this is that regular (but non-subscribing) readers are more-likely to be able to work out what they have and haven’t read already from summary text than from trying to decipher an entire post: possibly because my blogging had (has!) become rather verbose.

Scatmania.org until early 2012 — My 2011 design, in hindsight, said more about my mood and state-of-mind at the time than it did about artistic choices: what’s with all the black backgrounds and seriffed fonts? Is this a funeral parlour?

I went through a bit of a lull in blogging: I’ve joked that I spent more time on my 2010 and 2011 designs than I did on the sum total of the content that was published in between the pair of them (which isn’t true… at least, not quite!). In the month I left Aberystwyth for Oxford, for example, I was doing all kinds of exciting and new things… and yet I only wrote a total of two blog posts.

With RSS waning in popularity – which I can’t understand: RSS is amazing! – I began to crosspost to social networks like Twitter and Google+ (although no longer to Google+, following the news of its imminent demise) to help those readers who prefer to get their content via these media, but because I wasn’t producing much content, it probably didn’t make a significant difference anyway: the chance of a regular reader “missing” something must have been remarkably slim.

Scatmania.org in 2012 — The 2012 design featured “CSS peekaboo”: a transformation that caused my head to “hide” from you behind the search bar if your cursor got too close. Ruth, I hear, spent far too long playing with just this feature.

Nobody calls me “Scatman Dan” any more, and hadn’t for a long, long time. Given that my name is already awesome and unique all by itself (having changed to be so during the era in which scatmania.org was my primary personal domain name), it felt like I had the opportunity to rebrand.

I moved my blog to a new domain, DanQ.me (which is nice and short, too) and came up with a new collection of colours, fonts, and layout choices that I felt better-reflected my identity… and the fact that my blog was becoming less a place to record the mundane details of my daily life and more a place where I talk about (principally-web) technology, security, and GPS games… and just occasionally about other topics like breadmaking and books. Also, it gave me a chance to get on top of the current trend in web design for big, clean, empty spaces, square corners, and using pictures as the hook to a story.

I’ve been working harder this last year or two to re-integrate (in a PESOS-like way) into my blog content that I’ve published elsewhere, mostly geocaching logs and geohashing expedition records, and I’ve also done so retroactively, so in addition to my first blog article on the subject of geocaching, you can read my first ever cache log without switching to a different site nor relying upon the continued existence and accessibility of that site. I’ve been working at being increasingly mindful of where my content is siloed outside of my control and reclaiming it by hosting it here, on my blog.

Particular areas in which I produce content elsewhere but would like to at-least maintain a copy here, and would ideally publish here first and syndicate elsewhere, although I appreciate that this is difficult, are:

GPS games like geocaching and geohashing – I’ve mostly got this under control, but could enjoy streamlining the process or pushing towards POSSE
Reddit, where I’ve written tens of thousands of words under a variety of accounts, but I don’t really pay attention to the site any more
I left Facebook in 2011 but I still have a backup of what was on my “Wall” at that point, which I could look into reintegrating into my blog
I share a lot of the source code I write via my GitHub account, but I’m painfully aware that this is yet-another-silo that I ought to learn not to depend upon (and it ought to be simple enough to mirror my repos on my own site!)
I’ve got a reasonable number of videos on two YouTube channels which are online by Google’s good graces (and potential for advertising revenue); for a handful of technical reasons they’re a bit of a pain to self-host, but perhaps my blog could act as a secondary source to my own video content
I write business reviews on Google Maps which I should probably look into recovering from the hivemind and hosting here… in fact, I’ve probably written plenty of reviews on other sites, too, like Amazon for example…
On two previous occasions I’ve maintained an online photo gallery; I might someday resurrect the concept, at least for the photos that used to be published on them
I’ve dabbled on a handful of other, often weirder, social networks before like Scuttlebutt (which has a genius concept, by the way) and Ello, and ought to check if there’s anything “original” on there I should reintegrate
Going way, way back, there are a good number of usenet postings I’ve made over the last twenty-something years that I could reclaim, if I can find them…

(if you’re asking why I’m inclined to do all of these things: here’s why)

20 years and around 717,000 words worth of blogging down, it’s interesting to look back and see how things have changed: in my life, on the Web, and in the world in general. I’ve seen many friends’ blogs come and go: they move into a new phase of their life and don’t feel like what they wrote before reflects them today, most often, and so they delete them… which is fine, of course: it’s their content! But for me it’s always felt wrong to do so, for two reasons: firstly, it feels false to do so given that once something’s been put on the Web, it might well be online forever – you can’t put the genie back in the bottle! And secondly: for me, it’s valuable to own everything I wrote before. Even the cringeworthy things I wrote as a teenager who thought they knew everything and the antagonistic stuff I wrote in my early 20s but that I clearly wouldn’t stand by today is part of my history, and hiding that would be a disservice to myself.

The 17-year-old who wrote my first blog posts two decades ago this month fully expected that the things he wrote would be online forever, and I don’t intend to take that away from him. I’m sure that when I write a post in October 2038 looking back on the next two decades, I’ll roll my eyes at myself today, too, but for me: that’s part of the joy of a long-running personal blog. It’s like a diary, but with a sense of accountability. It’s a space on the web that’s “mine” into which I can dump pretty-much whatever I like.

I love it: I’ve been blogging for over half of my life, and if I can get back to you in 2031 and tell you that I’ve by-then been doing so for two-thirds of my life, that would be a win.

How Edge Follows In IE’s Security Failings

I’ve generally been pretty defensive of Microsoft Edge, the default web browser in Windows 10. Unlike its much-mocked predecessor Internet Explorer, Edge is fast, clean, modern, and boasts good standards-compliance: all of the things that Internet Explorer infamously failed at! I was genuinely surprised to see Edge fail to gain a significant market share in its first few years: it seemed to me that everyday Windows users installed other browsers (mostly Chrome, which is causing its own problems) specifically because Internet Explorer was so terrible, and that once their default browser was replaced with something moderately-good this would no longer be the case. But that’s not what’s happened. Maybe it’s because Edge’s branding is too-remiscient of its terrible predecessor or maybe just because Windows users have grown culturally-used to the idea that the first thing they should do on a new PC is download a different browser, but whatever the reason, Edge is neglected. And for the most part, I’ve argued, that’s a shame.

Edge's minimalistic Certificate View. — I ranted at an Edge developer I met at a conference, once, about Edge’s weak TLS debugging tools that couldn’t identify an OCSP stapling issue that only affected Edge, but I thought that was the worse of its bugs… until now…

But I’ve changed my tune this week after doing some research that demonstrates that a long-standing security issue of Internet Explorer is alive and well in Edge. This particular issue, billed as a “feature” by Microsoft, is deliberately absent from virtually every other web browser.

About 5 years ago, Steve Gibson observed a special feature of EV (Extended Validation) SSL certificates used on HTTPS websites: that their extra-special “green bar”/company name feature only appears if the root CA (certificate authority) is among the browser’s default trust store for EV certificate signing. That’s a pretty-cool feature! It means that if you’re on a website where you’d expect to see a “green bar”, like Three Rings, PayPal, or HSBC, then if you don’t see the green bar one day it most-likely means that your connection is being intercepted in the kind of way I described earlier this year, and everything you see or send including passwords and credit card numbers could be at risk. This could be malicious software (or nonmalicious software: some antivirus software breaks EV certificates!) or it could be your friendly local network admin’s middlebox (you trust your IT team, right?), but either way: at least you have a chance of noticing, right?

Firefox address bars showing EV certificates of Three Rings CIC (GB), PayPal, Inc. (US), and HSBC Holdings plc (GB) — Firefox, like most browsers, shows the company name in the address bar when valid EV certificates are presented, and hides it when the validity of that certificate is put into question by e.g. network sniffing tools set up by your IT department.

Browsers requiring that the EV certificate be signed by a one of a trusted list of CAs and not allowing that list to be manipulated (short of recompiling the browser from scratch) is a great feature that – were it properly publicised and supported by good user interface design, which it isn’t – would go a long way to protecting web users from unwanted surveillance by network administrators working for their employers, Internet service providers, and governments. Great! Except Internet Explorer went and fucked it up. As Gibson reported, not only does Internet Explorer ignore the rule of not allowing administrators to override the contents of the trusted list but Microsoft even provides a tool to help them do it!

Address bars from major browsers connecting to a spoofed site, with EV certificate "green bars" showing only in Internet Explorer and Edge. — From top to bottom: Internet Explorer 11, Edge 17, Firefox 61, Chrome 68. Only Internet Explorer and Edge show the (illegitimate) certificate for “Barclays PLC”. Sorry, Barclays; I had to spoof *somebody*.

I decided to replicate Gibson’s experiment to confirm his results with today’s browsers: I was also interested to see whether Edge had resolved this problem in Internet Explorer. My full code and configuration can be found here. As is doubtless clear from the title of this post and the screenshot above, Edge failed the test: it exhibits exactly the same troubling behaviour as Internet Explorer.

Thanks, Microsoft.

Safari doesn't fall for it, either. — I also tried Safari (both on MacOS, above, and iOS, below) and it behaved as the other non-Microsoft browsers do (i.e. arguably more-correctly than IE or Edge).

I shan’t for a moment pretend that our current certification model isn’t without it’s problems – it’s deeply flawed; more on that in a future post – but that doesn’t give anybody an excuse to get away with making it worse. When it became apparent that Internet Explorer was affected by the “feature” described above, we all collectively rolled our eyes because we didn’t expect better of everybody’s least-favourite web browser. But for Edge to inherit this deliberate-fault, despite every other browser (even those that share its certificate store) going in the opposite direction, is just insulting.
