This week, I received a ~240V AC electric shock. I can’t recommend it.

A 10-year-old girl hangs from a scaffolding pole outside a white house.
As you may have guessed based on photos in previous posts, our house is currently wrapped in a convenient climbing frame scaffolding.

We’re currently having our attic converted, so we’ve had some electricians in doing the necessary electrical wiring. Shortly after they first arrived they discovered that our existing electrics were pretty catastrophic, and needed to make a few changes including a new fusebox and disconnecting the hilariously-unsafe distribution board in the garage.

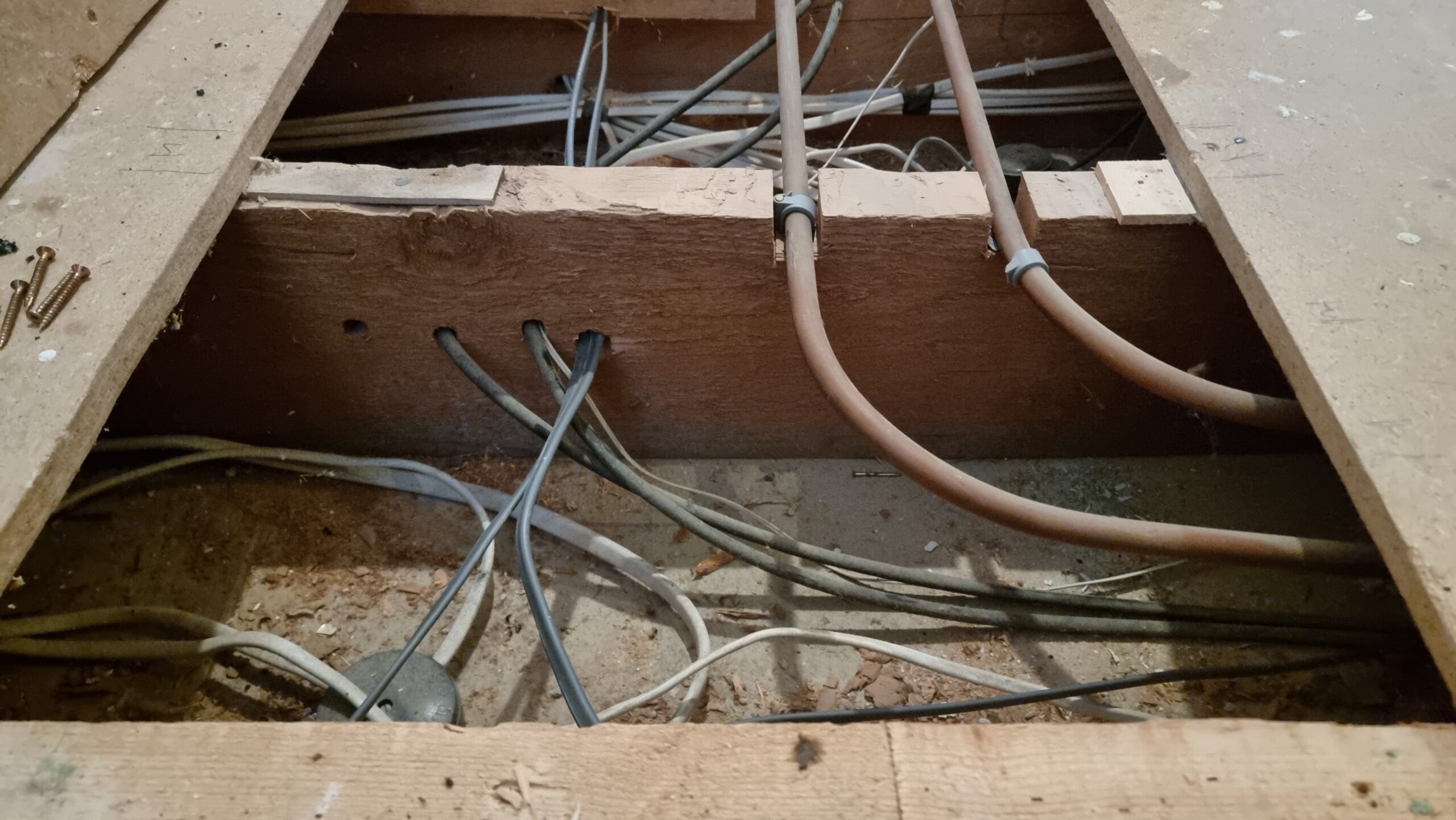

Lifted floor showing central heating pipes and a tangle of electrical cables.
The owner before last of our house worked for SSEN and did all of his own wiring, and left us a rats’ nest of spaghetti wiring that our electricians described as being unlike anything they’d ever seen before. Also a literal rats’ nest under the decking, but we got rid of that already.

After connecting everything new up they began switching everything back on and testing the circuits… and we were surprised to hear arcing sounds and see all the lights flickering.

The electricians switched everything off and started switching breakers back on one at a time to try to identify the source of the fault, reasonably assuming that something was shorting somewhere, but no matter what combination of switches were enabled there always seemed to be some kind of problem.

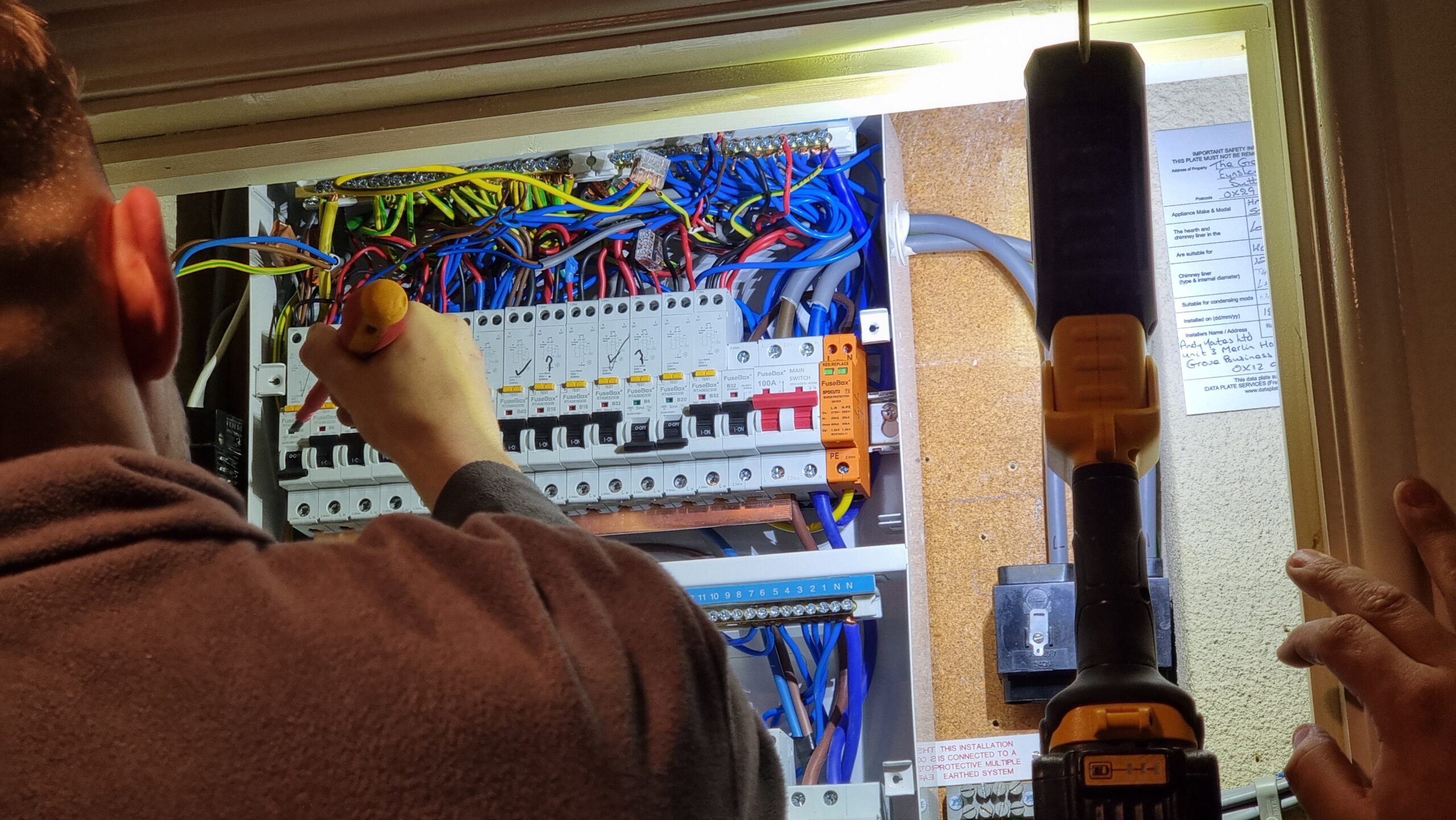

Electricity shining a torch into a cupboard containing an fusebox with an open cover; the switches are in a mixture of on and off positions.
You know those escape room puzzles where you have to get the right permutation of switch combinations? This was a lot less fun than that.

Noticing that the oven’s clock wasn’t just blinking 00:00 (as it would after a power cut) but repeatedly resetting itself to 00:00, I pointed this out to the electricians as an indicator that the problem was occurring on their current permutation of switches, which was strange because it was completely different to the permutation that had originally exhibited flickering lights.

I reached over to point at the oven, and the tip of my finger touched the metal of its case…

Blam! I felt a jolt through my hand and up my arm and uncontrollably leapt backwards across the room, convulsing as I fell to the floor. I gestured to the cooker and shouted something about it being live, and the electricians switched off its circuit and came running with those clever EM-field sensor pens they use.

Somehow the case of the cooker was energised despite being isolated at the fusebox? How could that be?

Dan, bare-chested, lies in a hospital bed with an ECG hooked-up to him.
Buy one ECG appointment. Get a free partial chest-shaving free!

I missed the next bits of the diagnosis of our electrical system because I was busy getting my own diagnosis: it turns out that if you get a mains electric shock – even if you’re conscious and mobile – the NHS really want you to go to A&E.

At my suggestion, Ruth delivered me to the Minor Injuries unit at our nearest hospital (I figured that what I had wasn’t that serious, and the local hospital generally has shorter wait times!)… who took one look at me and told me that I ought to be at the emergency department of the bigger hospital over the way.

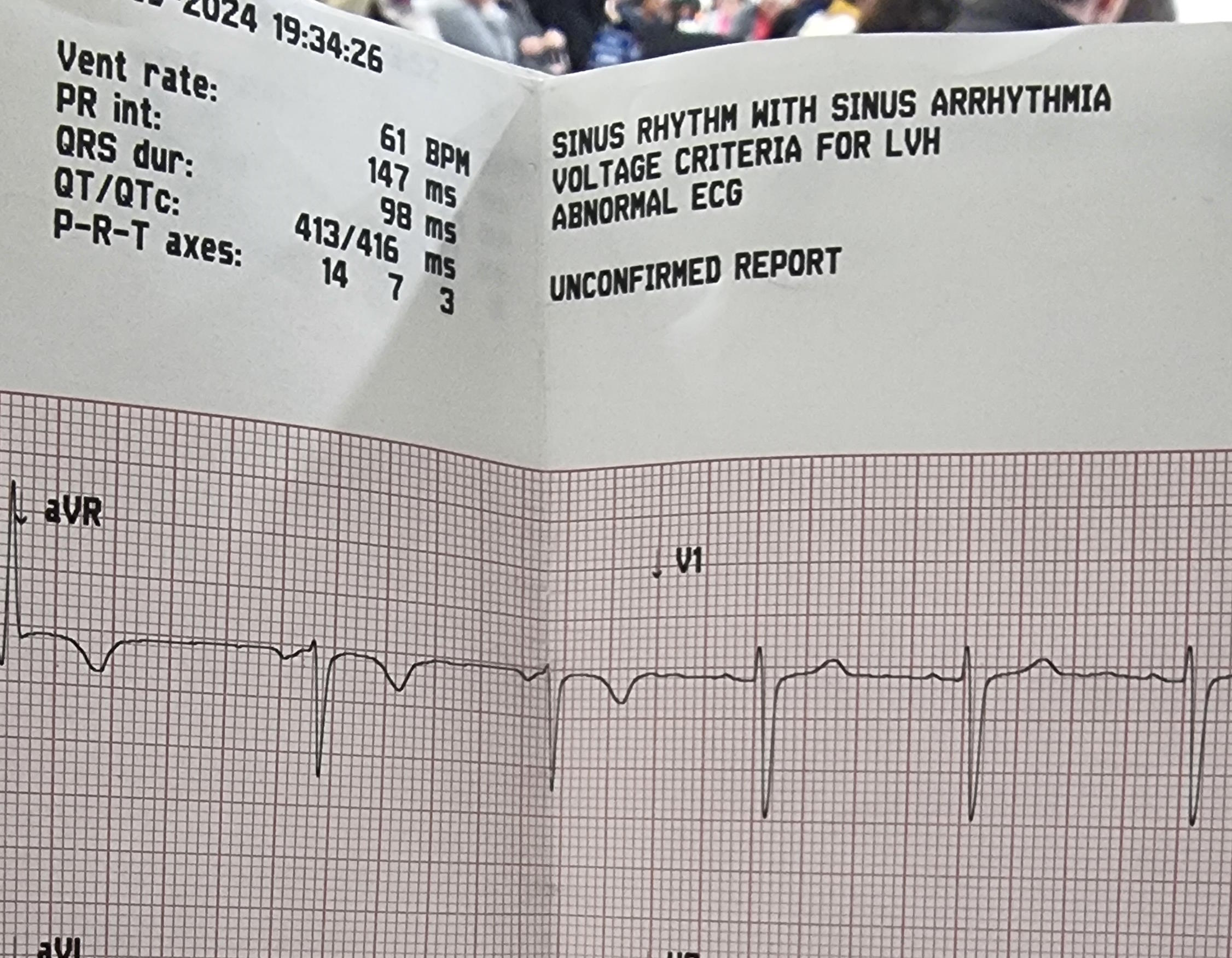

ECG printout showing a report of "Abnormal ECG: sinus arrhythmia".
The first hospital were kind enough to hook me up to an ECG before sending me on to the A&E department. It indicated possible cardiac arrhythmia in the sinus node – basically: my heart’s natural pacemaker was firing somewhat irregularly – which is kinda what you’d expect from an AC zap.

Off at the “right” hospital I got another round of ECG tests, some blood tests (which can apparently be used to diagnose muscular damage: who knew?), and all the regular observations of pulse and blood pressure and whatnot that you might expect.

And then, because let’s face it I was probably in better condition than most folks being dropped off at A&E, I was left to chill in a short stay ward while the doctors waited for test results to come through.

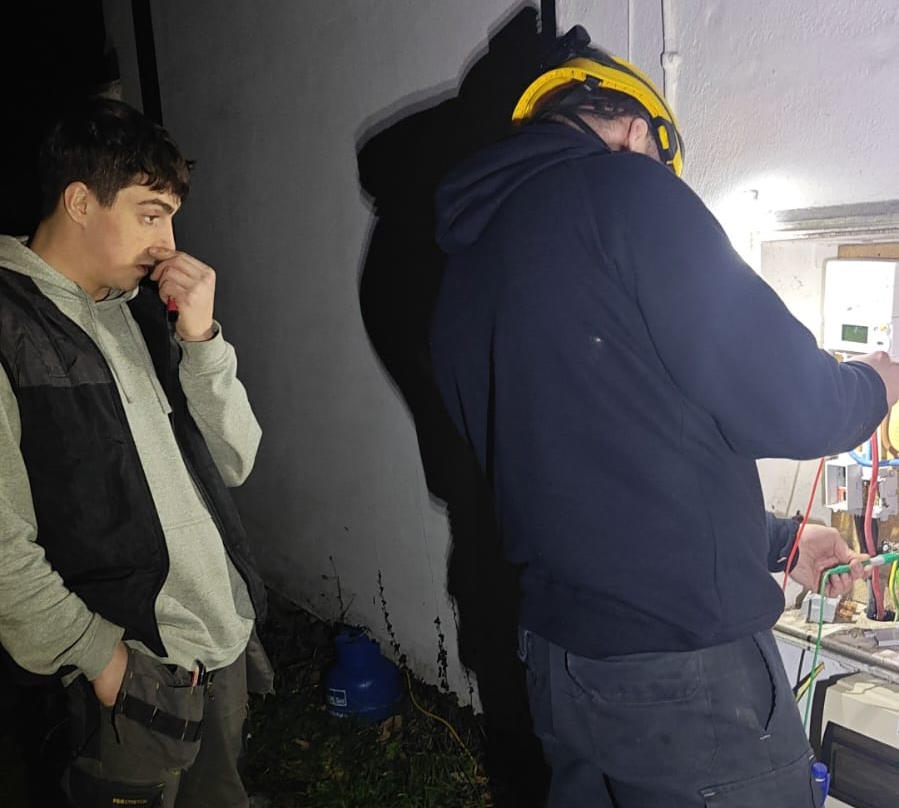

Two electricians, one in a hard hat, look in an outdoor metering cupboard by torchlight.
Apparently our electricity meter blew itself up somewhere along the way, leaving us with even less of a chance to turn the power back on again.

Meanwhile, back at home our electricians had called-in SSEN, who look after the grid in our area. It turns out that the problem wasn’t directly related to our electrical work at all but had occurred one or two pylons “upstream” from our house. A fault on the network had, from the sounds of things, resulted in “live” being sent down not only the live wire but up the earth wire too.

That’s why appliances in the house were energised even with their circuit breakers switched-off: they were connected to an earth that was doing pretty-much the opposite of what an earth should: discharging into the house!

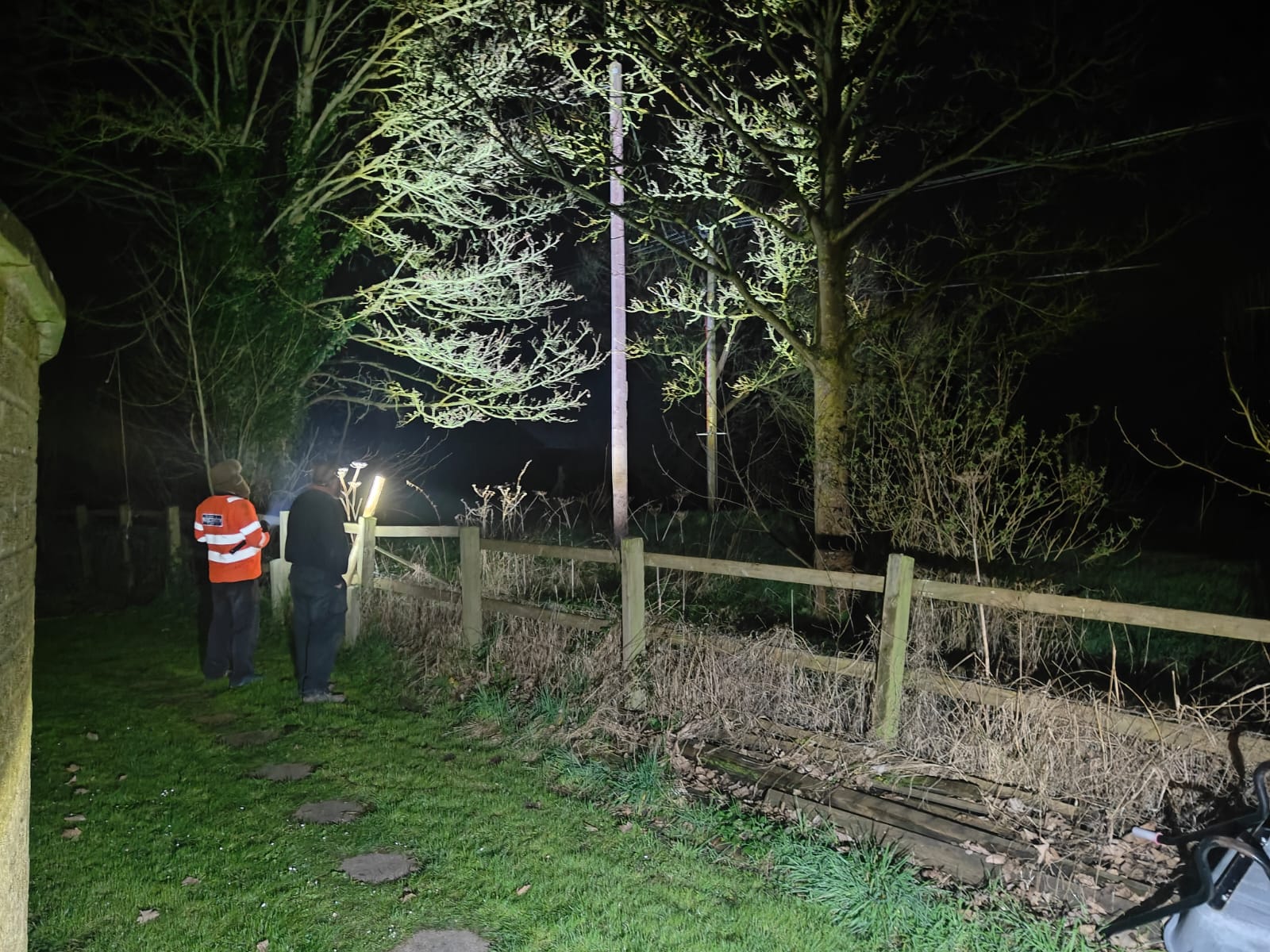

Linesmen examining an electricity pylon by torchlight.
For the next day or so, a parade of linesmen climbed up and down all the pylons in the field behind our house, hunting for the source of the problem.

It seems an inconceivable coincidence to me that a network fault might happen to occur during the downtime during which we happened to have electricians working, so I find myself wondering if perhaps the network fault had occurred some time ago but only become apparent/dangerous as a result of changes to our household configuration.

I’m no expert, but I sketched a diagram showing how such a thing might happen (click to embiggen). I’ll stress that I don’t know for certain what went wrong: I’m just basing this on what I’ve been told my SSEN plus a little speculation:

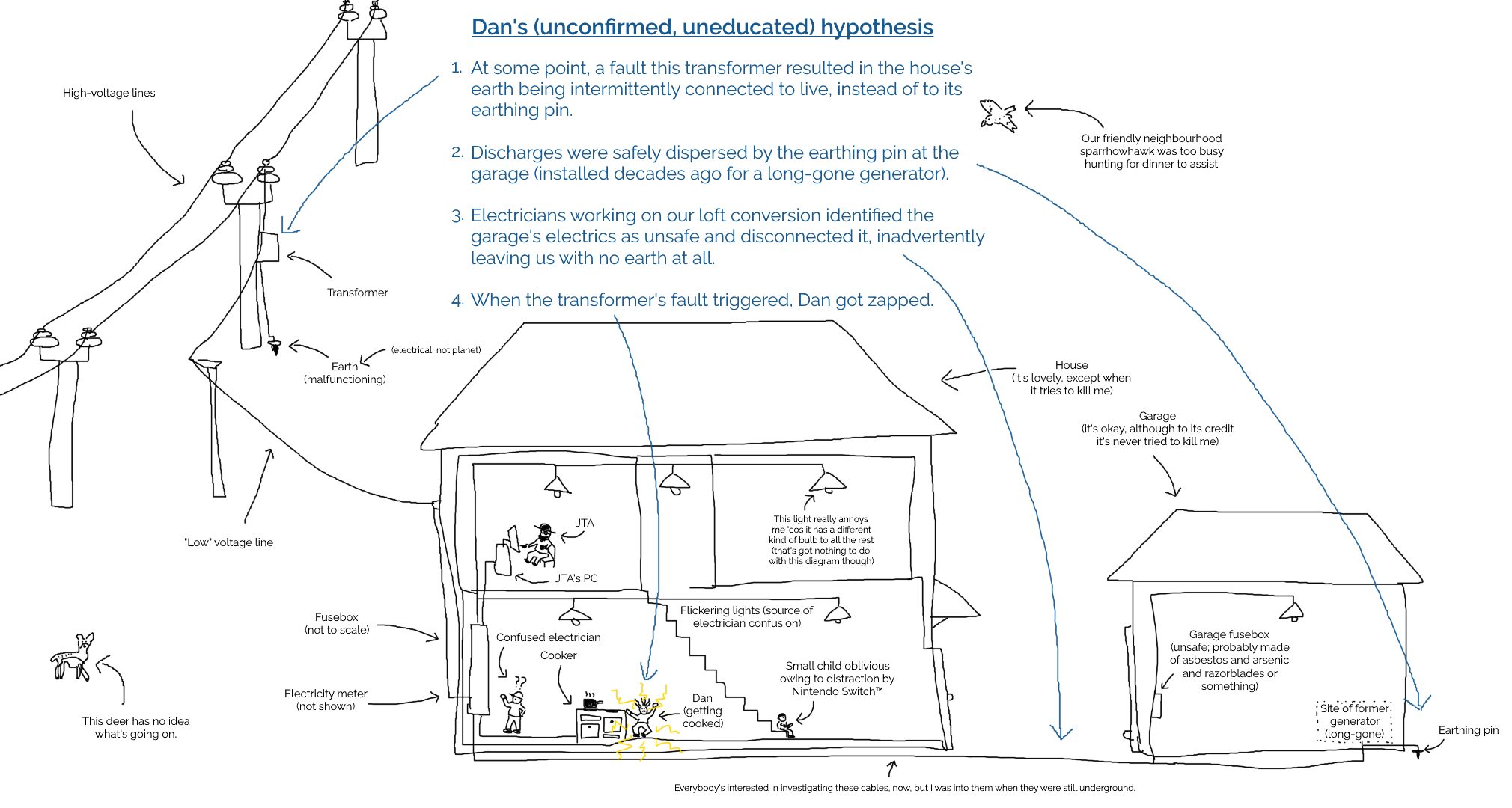

MS Paint grade illustration showing how a faulty transformer on a power pole, crossing live with earth, might go unnoticed as a result of the earth spike behind our garage until the garage's (unsafe) circuit is disconnected.

By the time I was home from the hospital the following day, our driveway was overflowing with the vehicles of grid engineers to the point of partially blocking the main street outside (which at least helped ensure that people obeyed our new 20mph limit for a change).

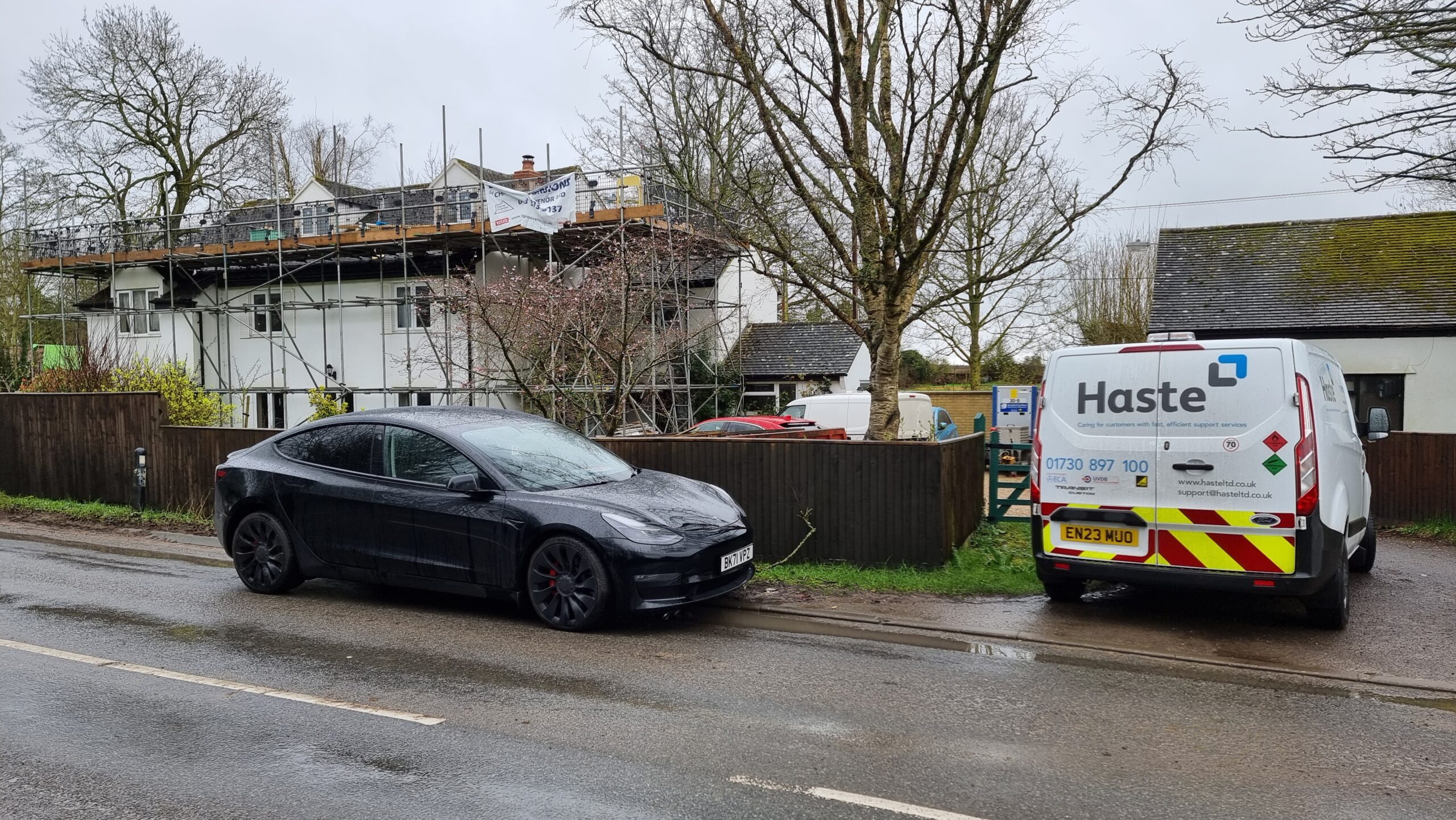

A driveway full of vehicles spills out onto the nearby road.
We weren’t even able to get our own car onto our driveway when we got back from the hospital.

Two and a half days later, I’m back at work and mostly recovered. I’ve still got some discomfort in my left hand, especially if I try to grip anything tightly, but I’m definitely moving in the right direction.

It’s actually more-annoying how much my chest itches from having various patches of hair shaved-off to make it possible to hook up ECG electrodes!

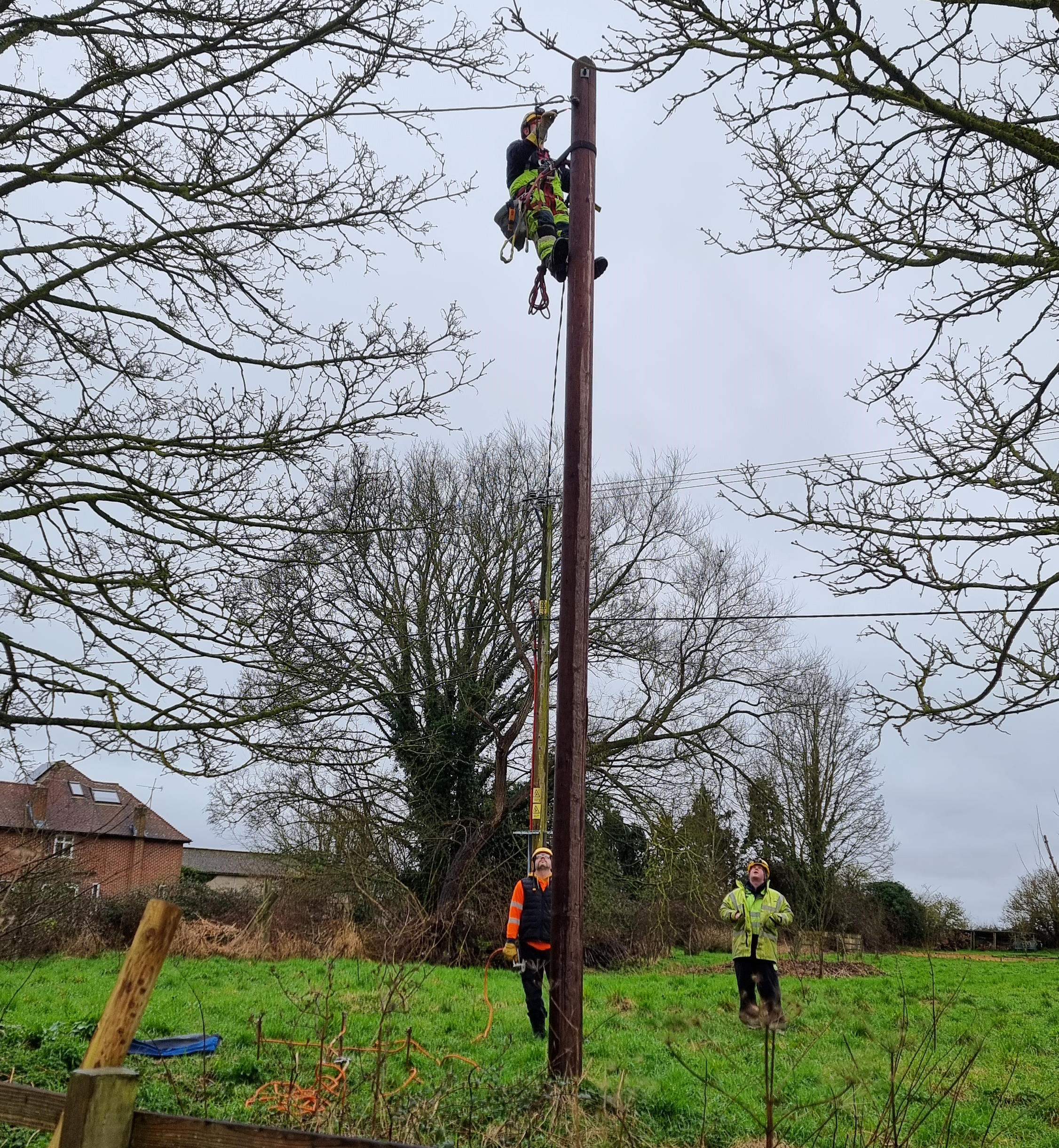

A linesman hangs from his climbing belt at the top of a pole, while two others look on from the ground.
The actual conversation at this point seemed to consist of the guy at the top of the pole confirming that yes, he really had disconnected the live wire from our house, and one at the bottom saying he can’t have because he’s still seeing electricity flowing. Makes sense now, doesn’t it?

Anyway, the short of it is that I recommend against getting zapped by the grid. If it had given me superpowers it might have been a different story, but I guess it just gave me sore muscles and a house with a dozen non-working sockets.

× × × × × × × × × ×
