MS Paint-grade QR Codes?

What if a QR code could look like a maze, hand-drawn with MS Paint?

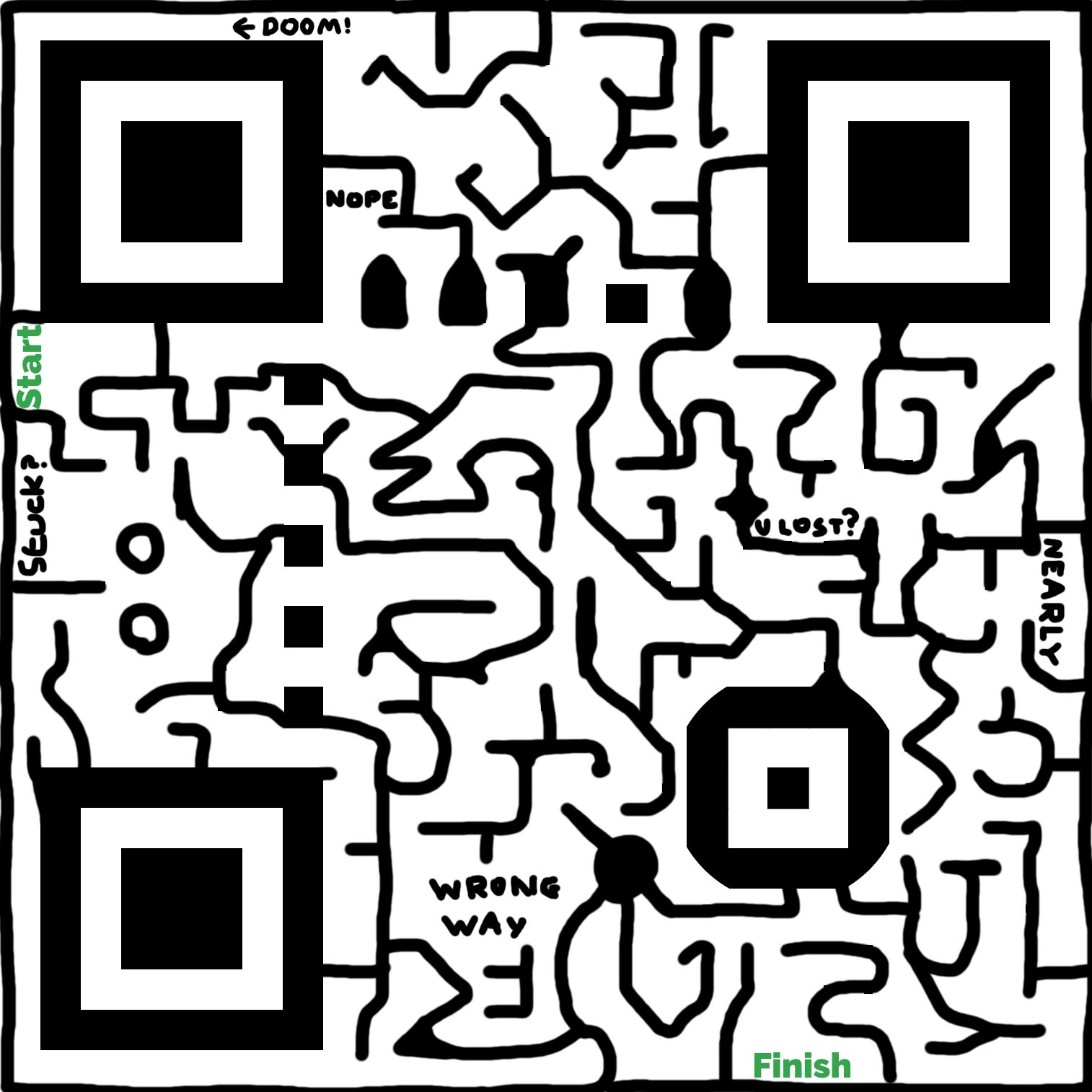

QR code that looks like a maze hand-drawn in Microsoft Paint, annotated with various discouraging messages like 'wrong way' and 'doom'.
Maybe a QR code can be… whatever you want it to be?

Inspired by Oscar Cunningham‘s excellent “working QR code in the style of Piet Mondrain”  and Andrew Taylor‘s “logical extension of the idea”, earlier this week, I decided to extend upon my much-earlier efforts to (ab)use QR codes and throw together the disgusting thing you see above.

Here’s how I made it:

  1. Generated a QR code as usual, minimising its size by making the URL uppercase (allows a smaller character set to be used) and maximising its resilience by ramping up the error correction to the maximum.
  2. Masked off all but the central 7% of each row and column, leaving just a grid of spots, and then re-adding the three large and one small square and the “zebra crossing” stripes that connect the large squares, to ensure rapid discovery.
  3. With a pink mask in place to help me see where I was working, drew lines, dots, and whatever else I liked over the black spots but not touching the white ones, to build a maze.
  4. Removed the pink mask, leaving just black and white. Tested a bit.

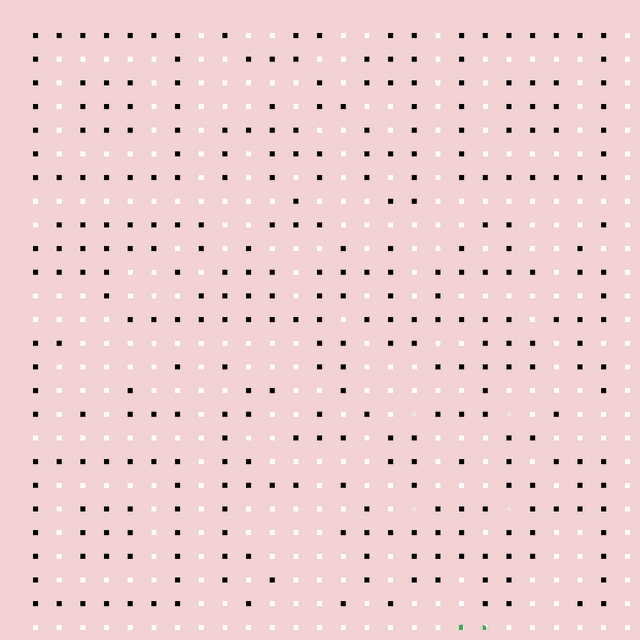

Extremely minimal version of the QR code above, with small spots of white or black in each grid square, with a pink mask surrounding.
It’s just about possible to scan this super-minimal QR code, but having the positioning elements in place to help the scanner identify that it is something scannable makes a huge difference.

Obviously this isn’t a clever idea for real-world scenarios. The point of QR codes’ resilience and error correction is to compensate for suboptimal conditions “in the field”, like reflections, glare, dust, grime, low light conditions, and so on.

But it’s kinda fun, right?

× ×
